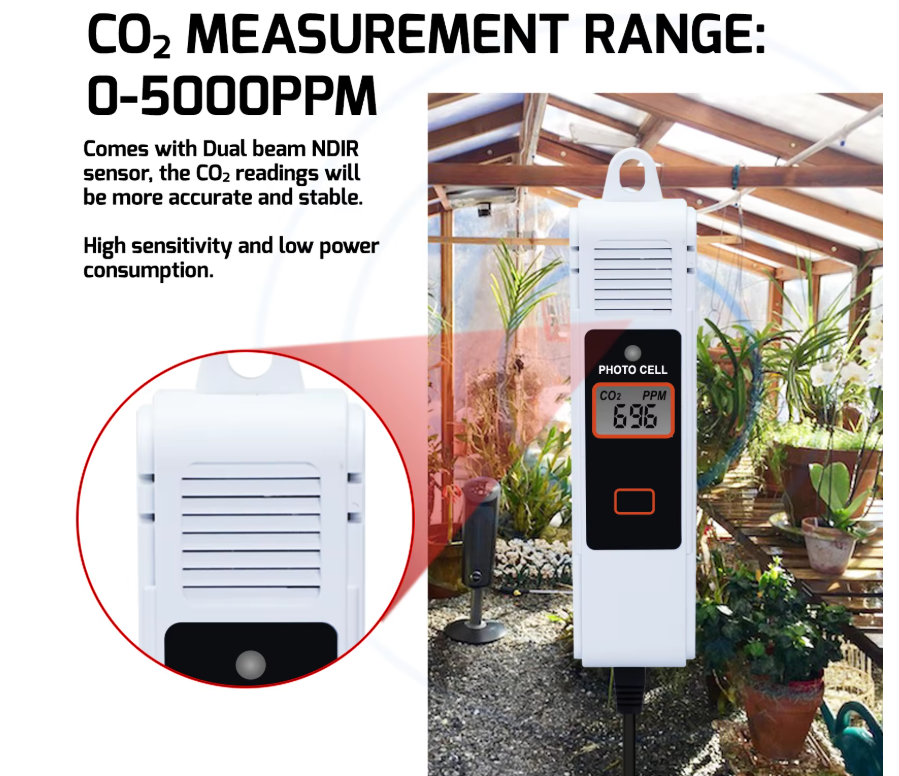

| CO2 Measurement | |
|
Range
|
0~5000ppm
|
|
Accuracy
|
0~3000ppm: ±50ppm or ±5% of reading, whichever is greater
over 3000ppm: ±7% |
|
Repeatability
|
20ppm at 400pp (standard: of 10 readings in 1 minute)
|
|
Resolution
|
1ppm (0~1000); 5ppm (1000~2000); 10ppm (>2000)
|
|
Temperature Dependence
|
±0.2% of reading per °C or ±2ppm, whichever is greater referenced to 25°C
|
|
Pressure Dependence
|
0.13% of reading per mmHg (corrected by user's altitude input)
|
|
Response Time
|
<2min for 63% of step change or <4.6min for 90% step change
|
|
Warm-up Time
|
<30 sec
|
|
Operating Environment
|
32°F to 122°F (0°C to 50°C); 0~95%, non-condensing
|
|
Storage Environment
|
-4°F to 140°F (-20°C to 60°C); 0~95%, non-condensing
|
|
Power Input
|
AC 100~240 VAC
|
|

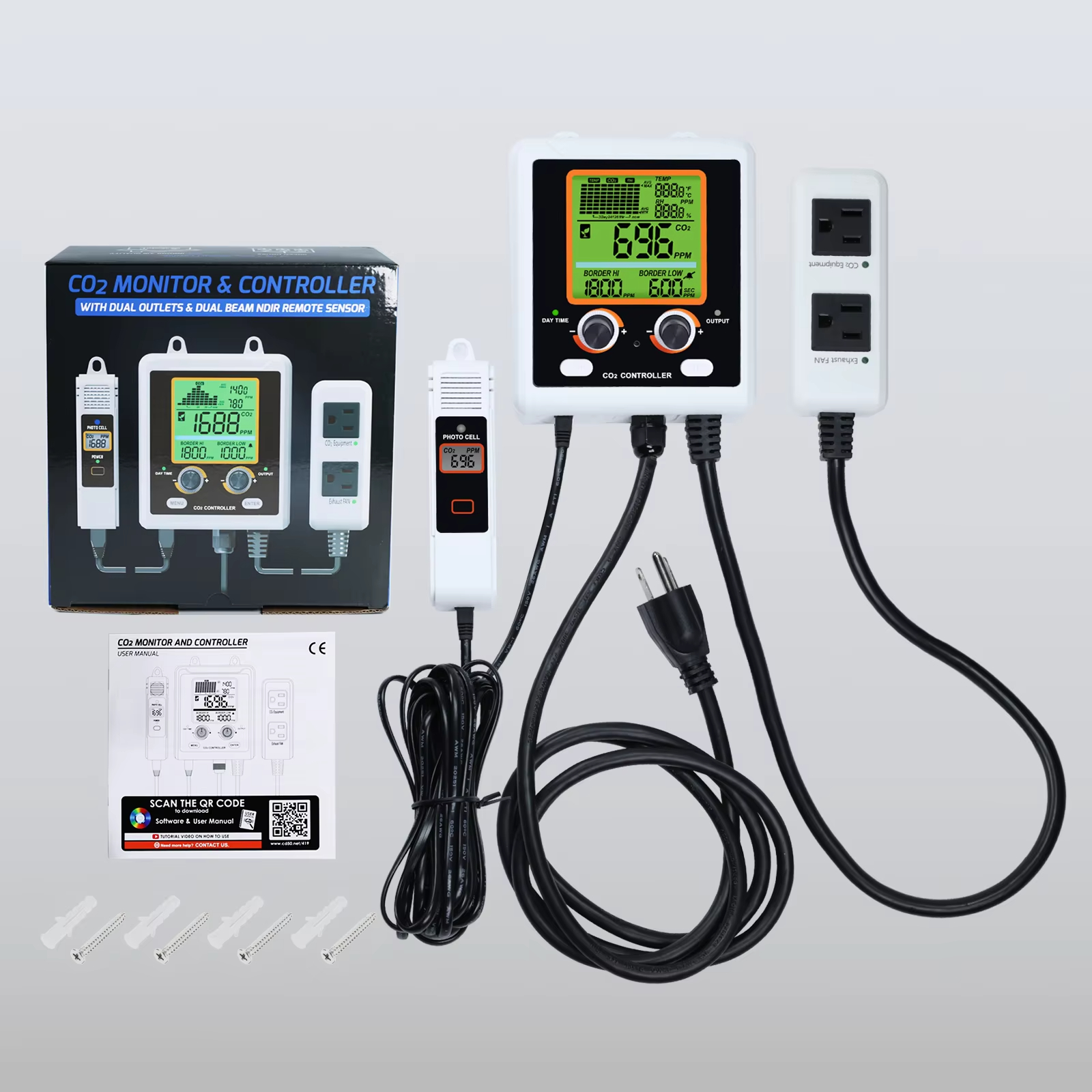

Dimension
|

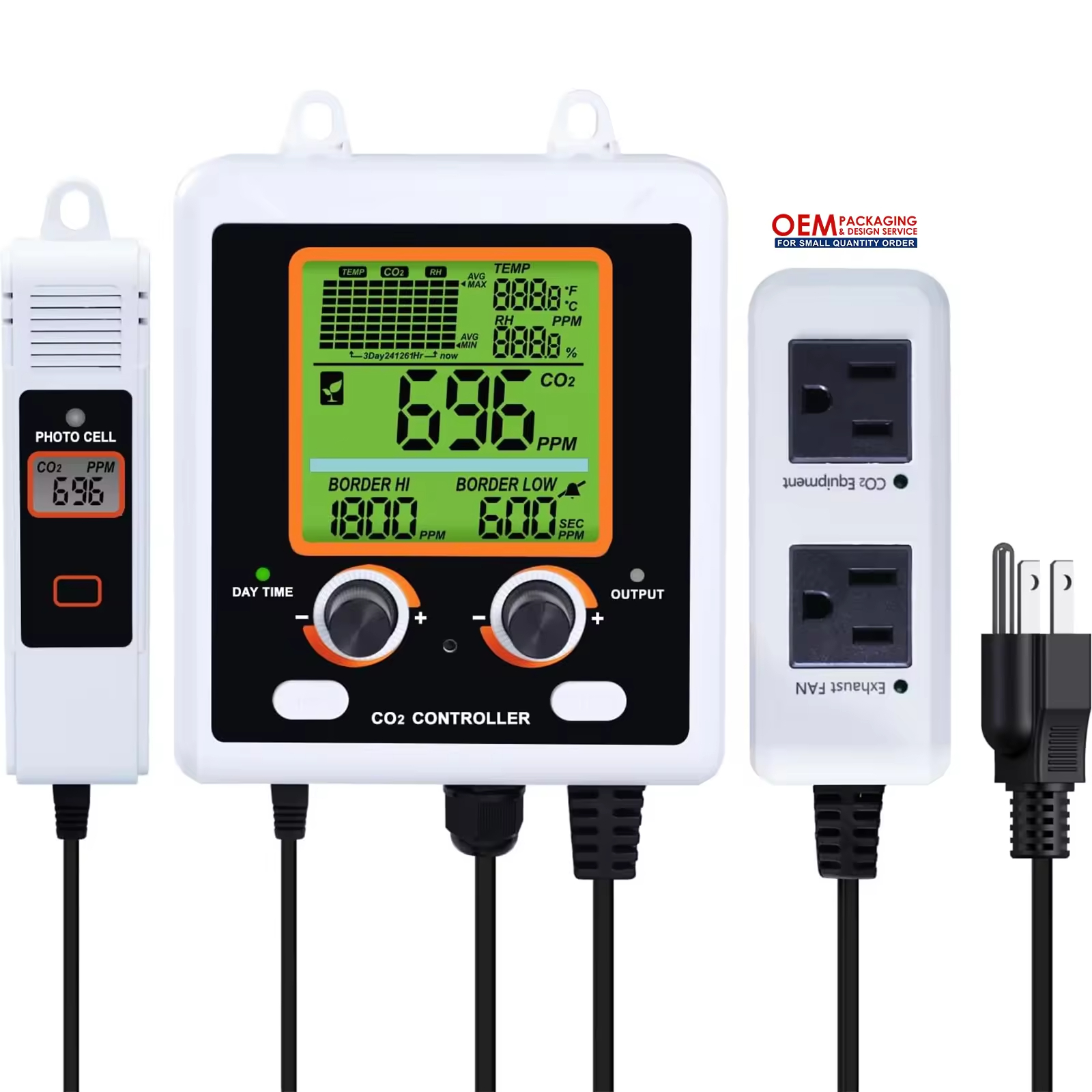

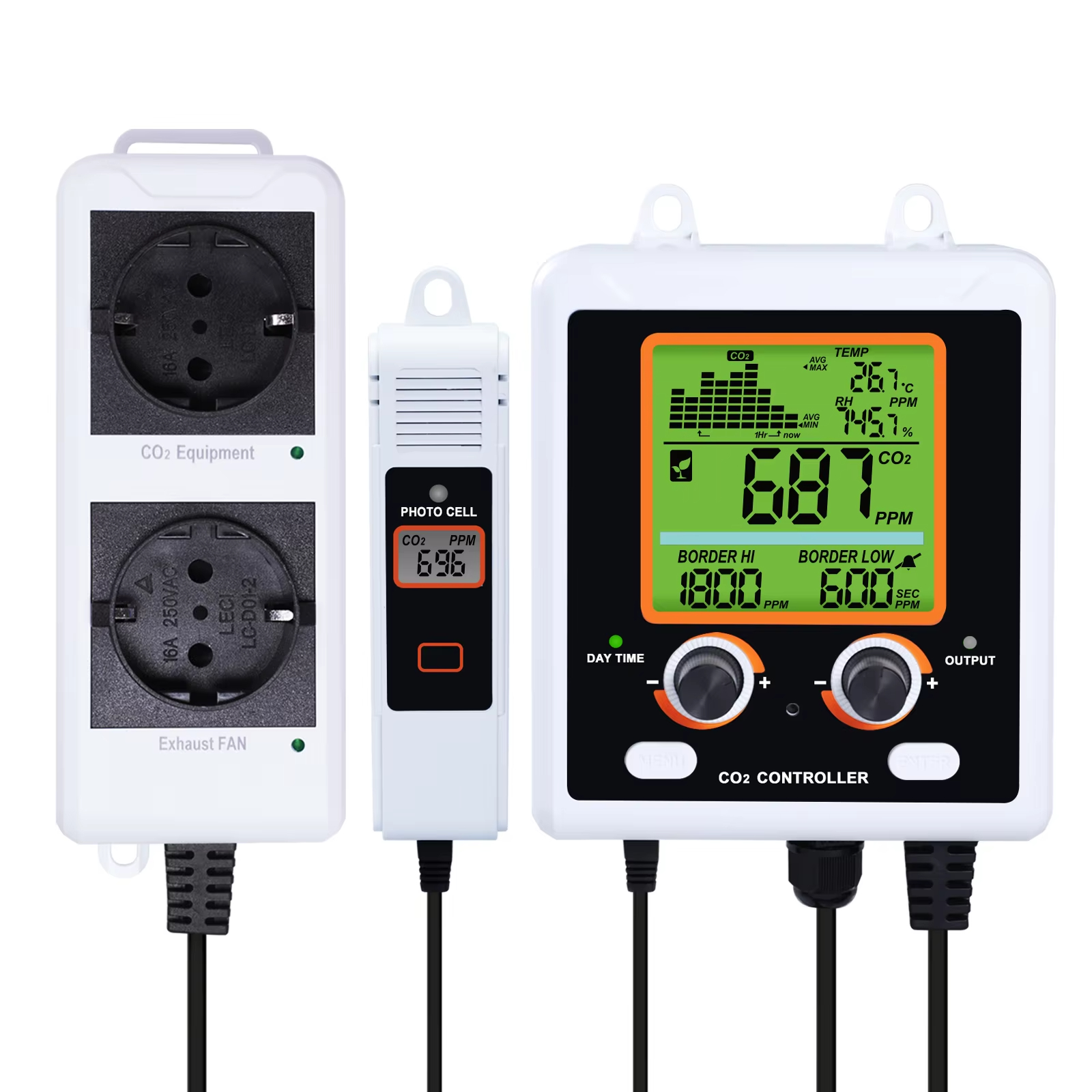

Sensor Unit: 153*33*27mm (6.0*1.3*1.1inch)
Controller Unit: 195*145*44mm (7.7*5.7*1.7inch) |
|
Weight
|
700g (24.7oz)
|
