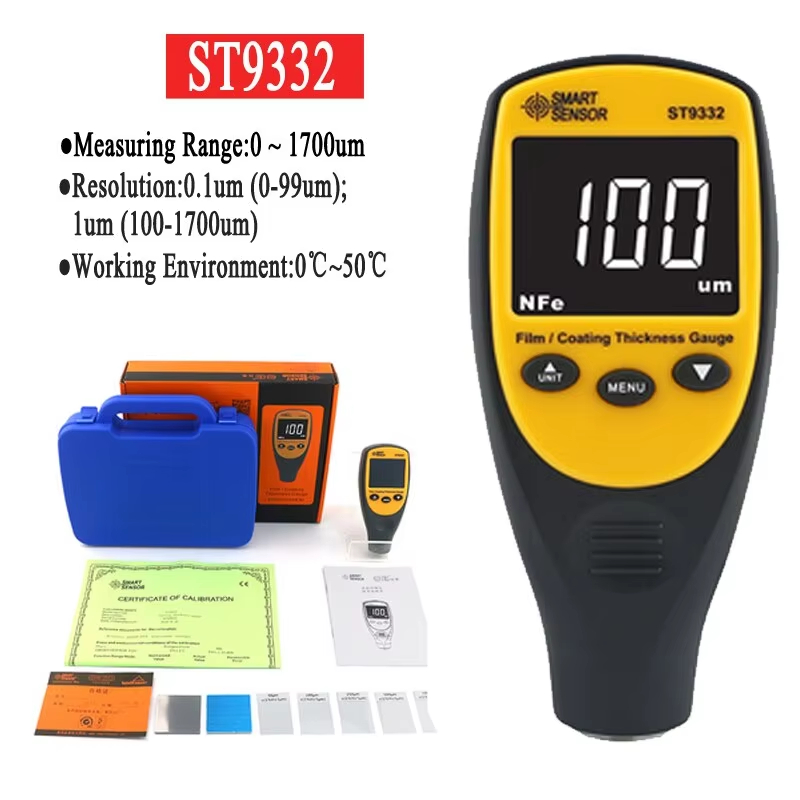

Measuring Range |
0 ~ 1700um |
|

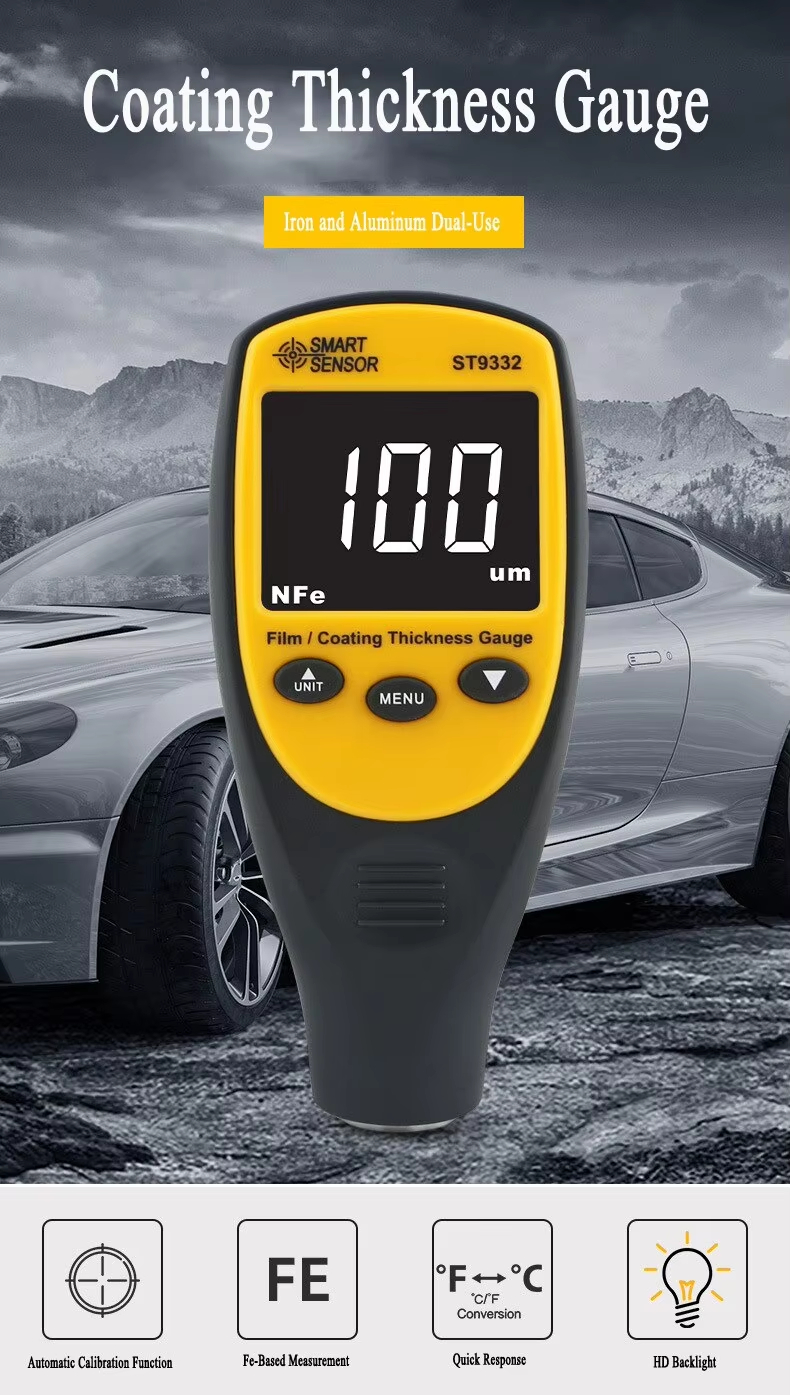

Principle of Measurement |
Magnetic and Eddy Current Thickness Measurement |
|
Accuracy |
+/-(1.8%μm+/-2um)(0-500μm) +/-(2.2%μm+/-2um)(500-1700μm) |
|
Resolution |
0.1μm (0-99um); 1μm (100-1700μm) |
|
Measure Repeatability |
+/-1μm 0-500μm +/-2μm 500-1700μm |
|
Minimum Measuring Area |
Magnetic: 25x25mm Non-magnetic: 25x25mm |
|
Minimum Curvature |
Convex Surface 5mm Concave 30mm |
|
Minimum Substrate Thickness |
Magnetism: 0.2 mm Non-magnetic: 0.05 mm |
|

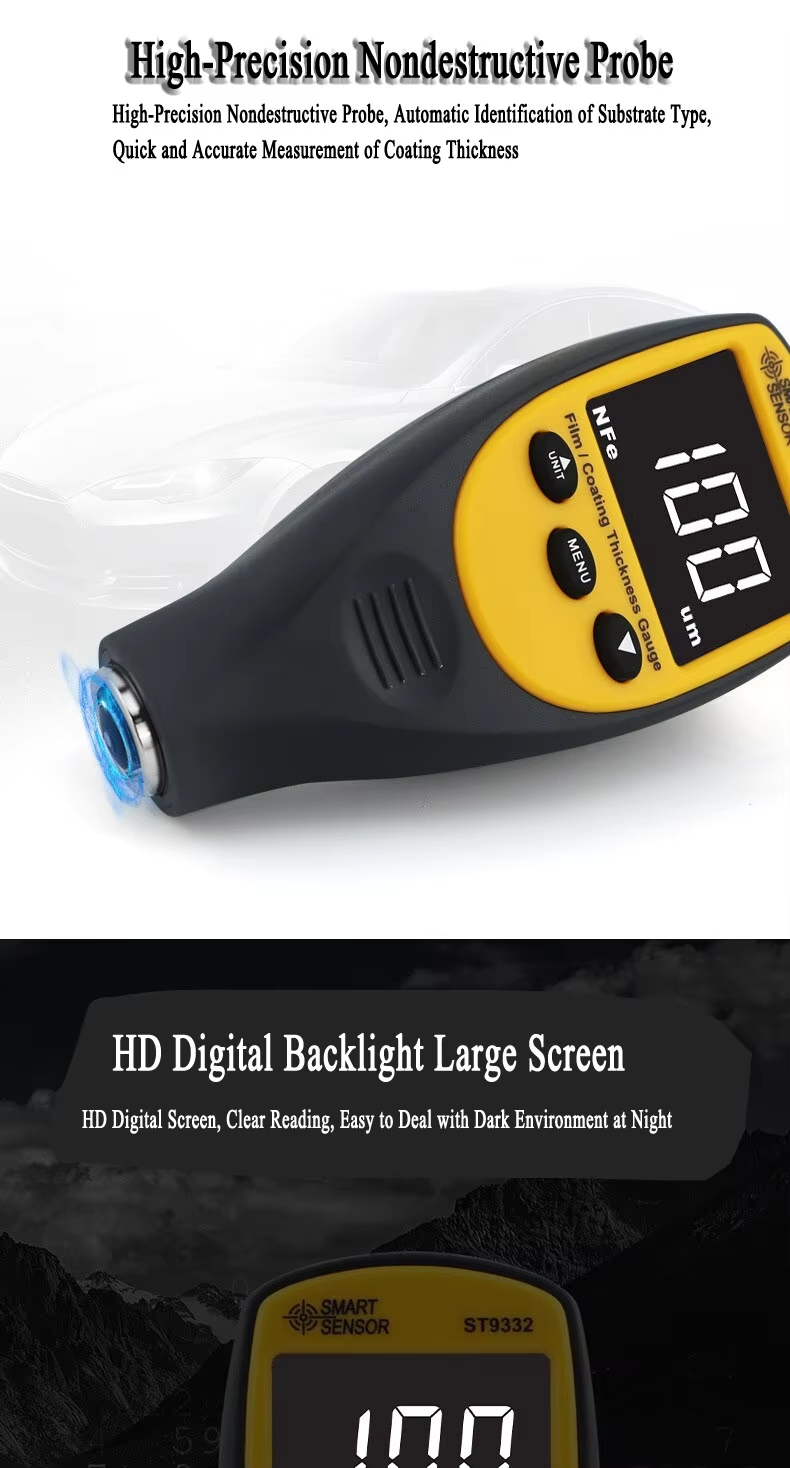

LCD Backlight Display |
Yes |
|
Low Power Prompt Function |
Yes |
|

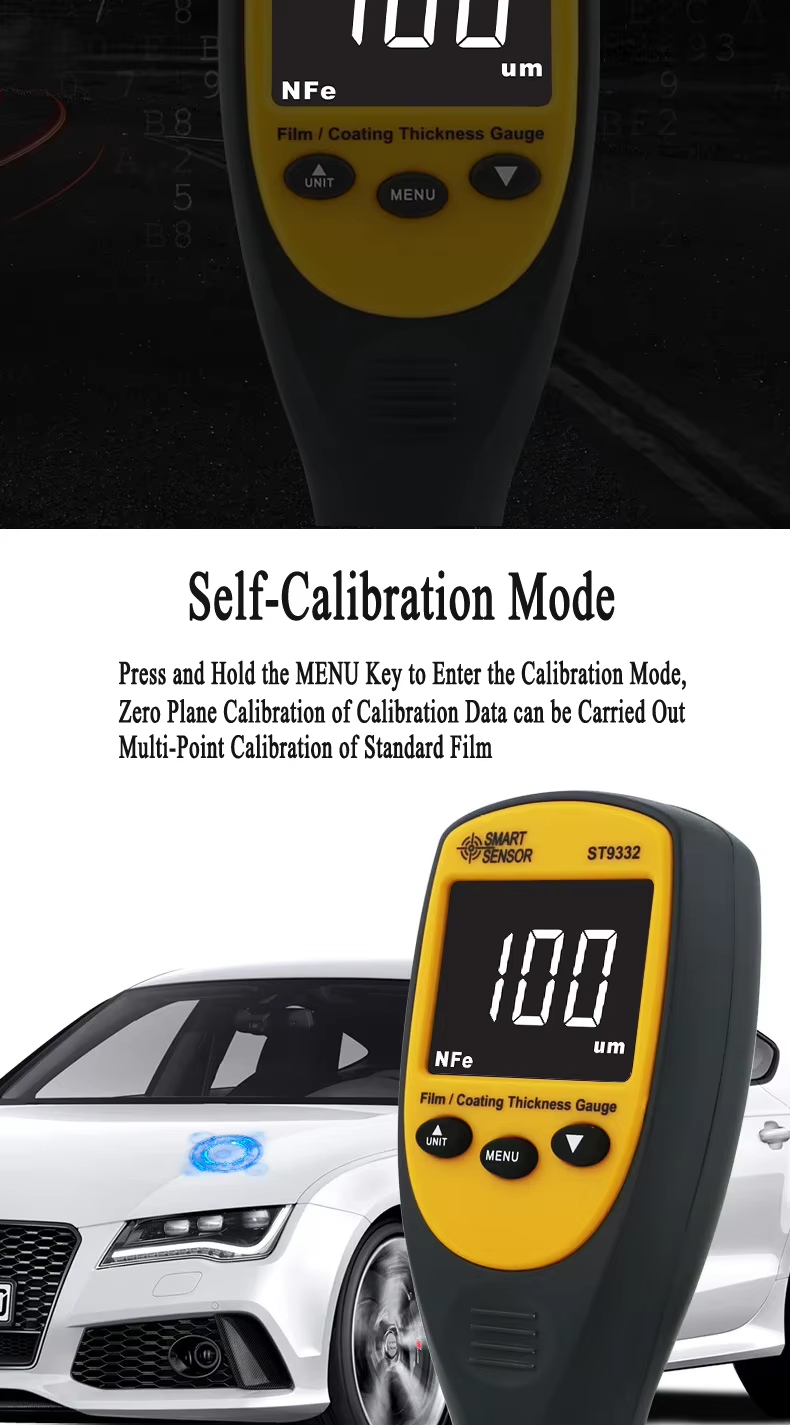

Zero Point Calibration |
Yes |
|
Basic Calibration |
Yes |
|
Single/Continuous Measurement |
Yes |
|
Data Storage |
Yes |
|
Automatic Shutdown |
Yes |
|

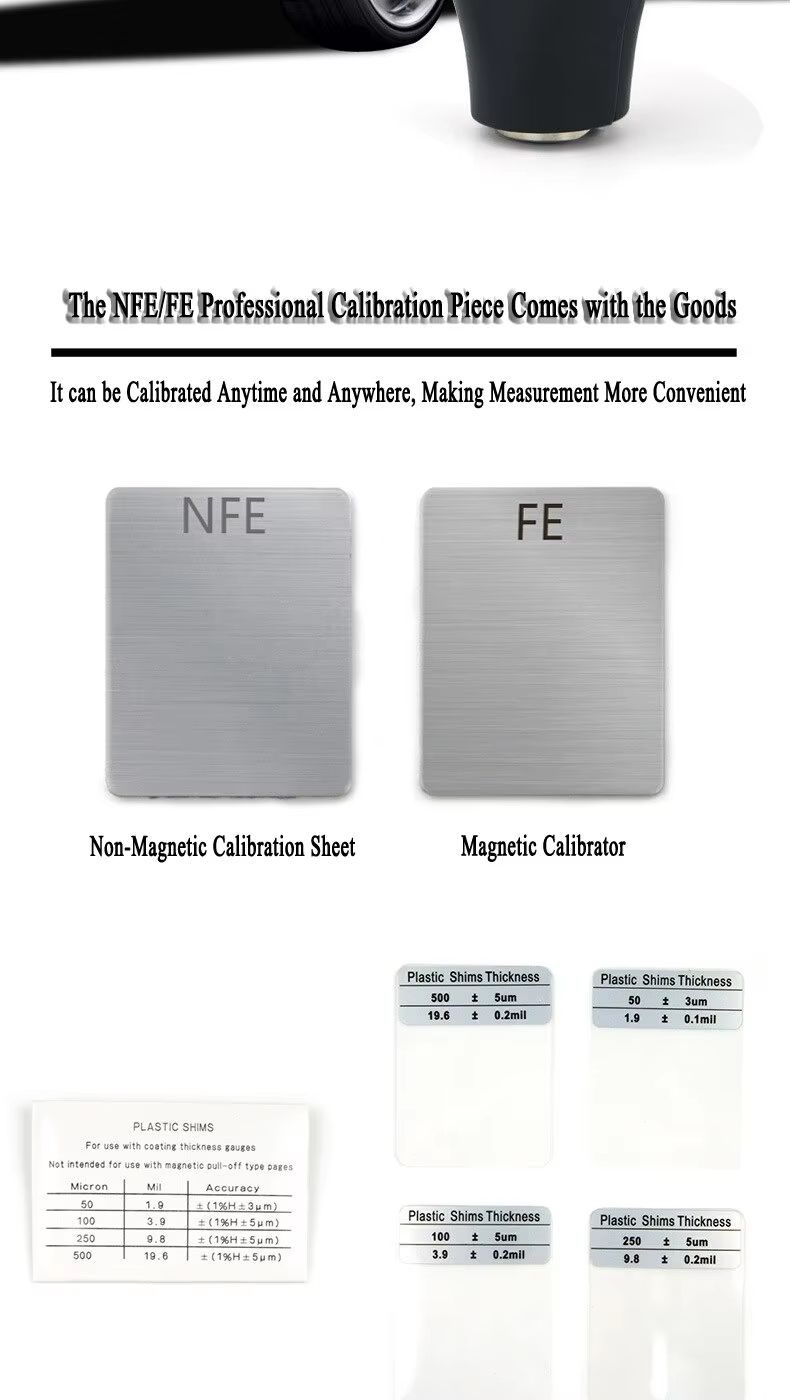

Automatic Calibration |
Automatic Calibration Based on 5 Different Calibration Substrates 0/50/100/250/500/1000 |
|
Maximum/Minimum Function |
Yes |
|
Conversion of Units |
Yes |
|
Working Environment |
0C~50C |
|
Power Supply |
2 * 1.5 V AAA Battery |
|
NET Weight of Product |
88g |
|
Product Dimensions |
123 * 55.6 * 28.8mm |
|
Packing Method |
--- |
Note:the batteries not included package
