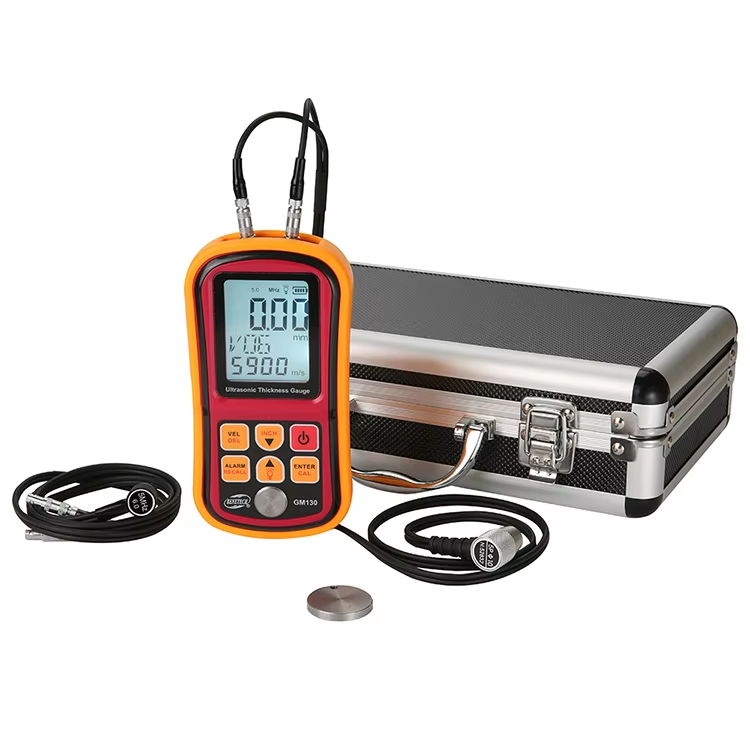

GM130 pipe thickness gauge is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely used in various precise measurement for different hardware/parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely applied in manufacture fields, metal processing, and commercial inspection.
Features:
1. Auto calibration to assure the accuracy
2. Sound velocity measurement: with a given thickness to measure the sound velocity to improve accuracy
3. Preset 12 sound velocities for different material
4. Coupling status indication
5. 12 thickness measurement data store and recall
6. Thickness alarm setup
7. Backlight display
8. Low battery indication
9. Auto power off
10. Metric/Imperial selection
Specification:

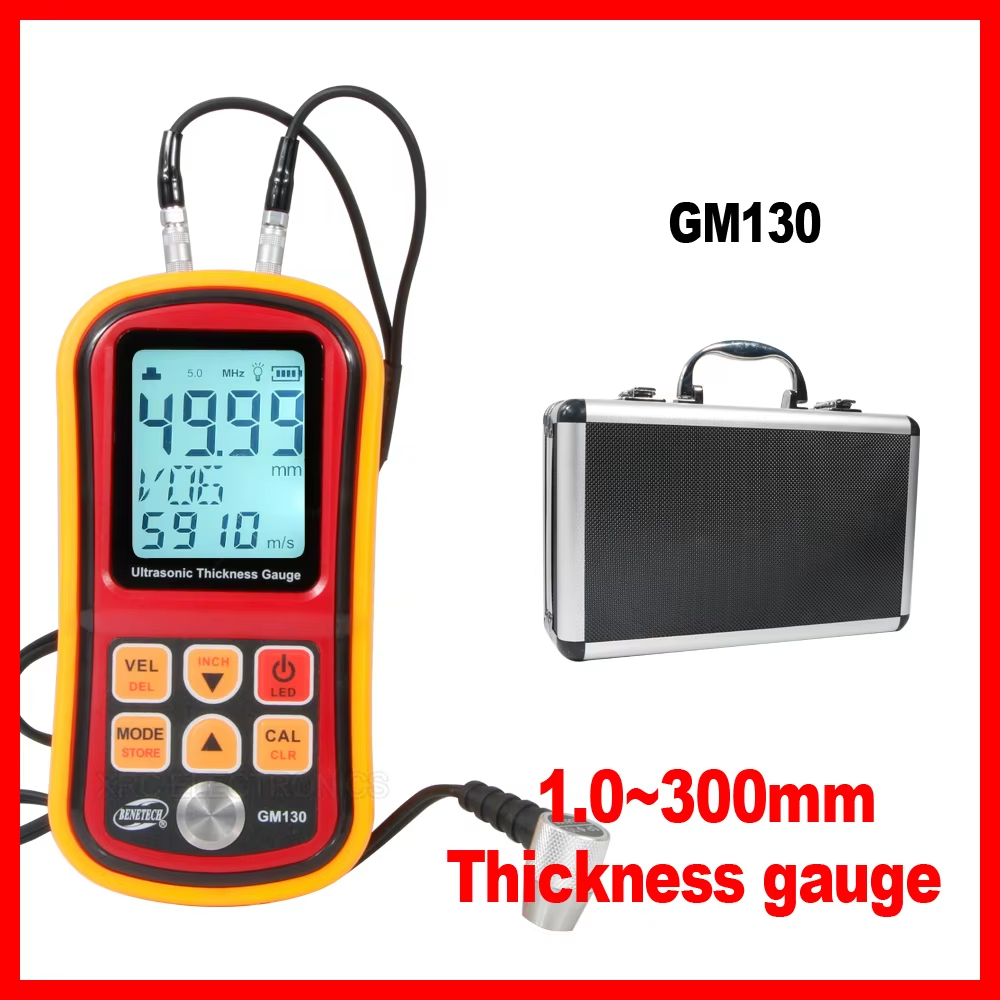

Measuring range: 1.00 to 300.0mm(steel)
Accuracy: (1%H+0.1mm)
H denotes the measured thickness
Working frequency: 5MHz
Resolution:0.01mm(1.00 to 99.99mm)
0.1mm(100 to 300mm)
Minimum limit for tube measuring steel :
15*2.0mm( 6mm transducer)
20*3.0mm( 10mm transducer)
Sound velocity range:1000 to 9999m/s
Thickness 20mm, accuracy of velocity: 1mm/H 100%
Thickness 20mm , accuracy of velocity: 5%
Operating environment :
Operation temperature: 0 to 40
Temperature of workpiece: < 6 0
Relative Humidity: <90%
Do not apply in violent vibration / erosive material
Avoid impact and humidity
Power supply:1.5V AAA * 3 PCS
Operation current: 35mA (with back light on)
Size: 72*29*146mm
Weight:223g
