| item |
value |
| Accuracy |
+/-1.5dB |
| place of origin |
China |
| |
Guangdong |
| material |
ABS |
| warranty |
No Warranty |
| customized support |
OEM, ODM |
| brand name |
Generic |
| Product name |
GM1351 Digital Sound Level Meter with LCD Display |
| Accuracy |
+/-1.5dB (under reference conditions) |
| Measuring Level |
30-130dB (A)/35-130dB (C) |
| Frequency Range |
31.5Hz to 8.5KHz |
| Linearity Range |
50dB/100dB |
| Power supply |
DC 9V battery |
| Sampling Rate |
2 times/seconds |
| Self Calibration Time |
3sec |
| Frequency Weighting |
A |
| Overload Indication |
OVER/UNDER |

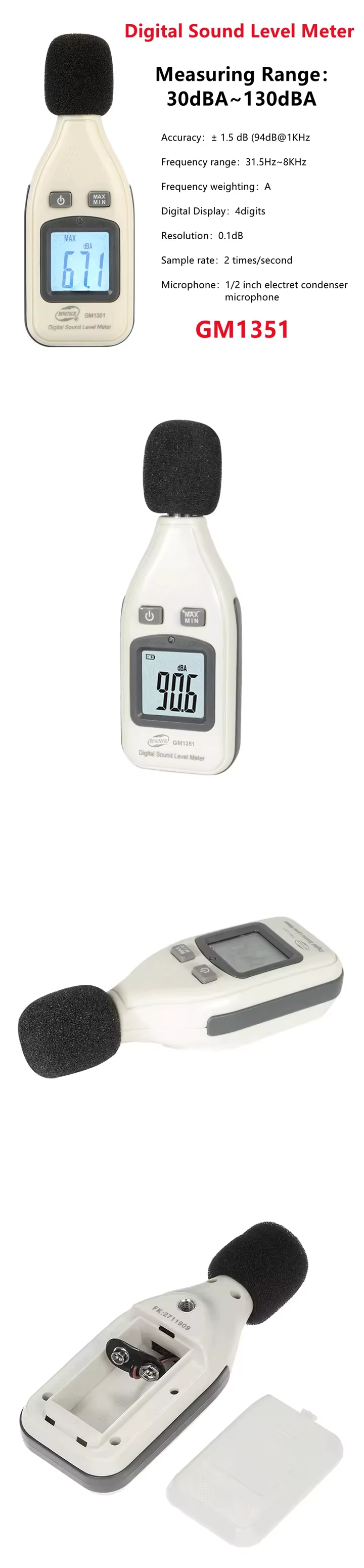

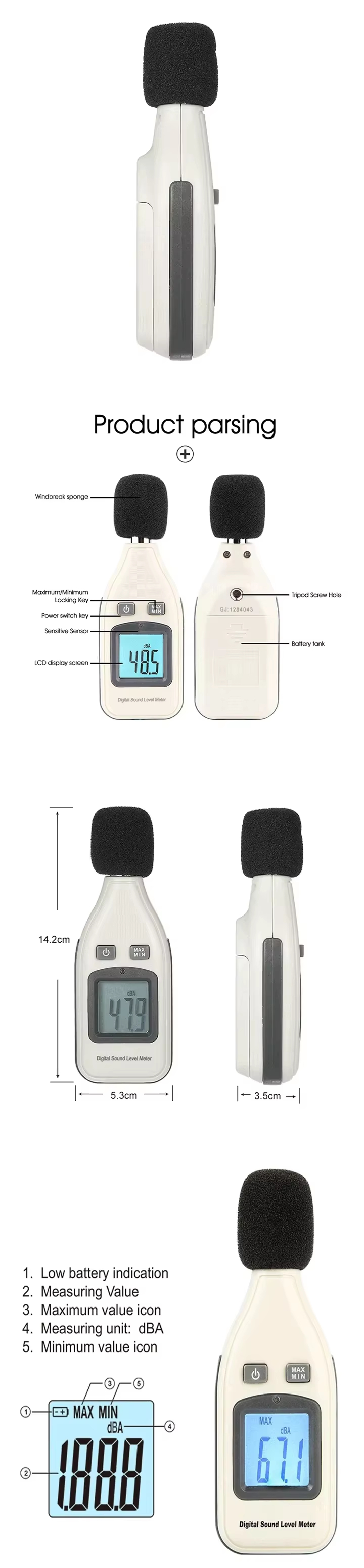

GM1351 Digital Sound Level Meter with LCD Display
This equipment has been designed to meet the requirements of measurement of security, health, Industrial safety offices and sound
quality control devices in various environments, including factory, office, traffic, family, and audio system.

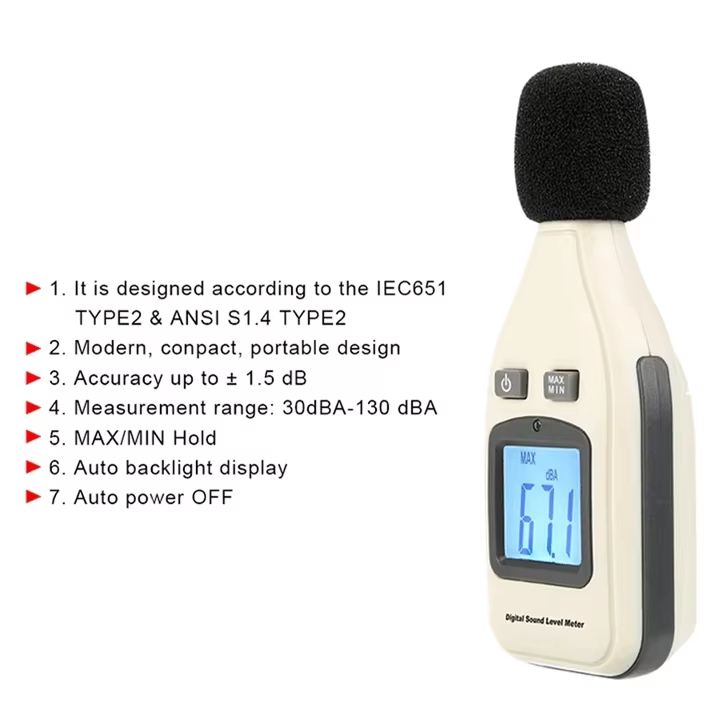

Functions:
1. It is designed in accordance with IEC651 TYPE2 and ANSI S1.4 TYPE2
2. Modern, compact and portable design
3. Accuracy up to +-1.5dB
4. Measurement range: 30dBA ~ 130dBA
5 MAX wait
6 auto backlight display
7. Auto power offSpecification
Measuring range: 30dBA ~ 130dBA
Precision: ± 1.5dB ( 94dB1kHz )
Resolution: 0.1dB
Frequency range: 31,5Hz ~ 8,5 KHz
Frequency weighted: And
Digital screen: 4 digits
Sampling frequency: 2 times/second
Microphone: 1/2-inch electret condenser microphone
Max wait: MAX
Condition: -10~60℃ 10%~80%RH
Storage condition: 0~40℃ 10%~70%RH
Power supply: 9V battery
Power life: Approximately 30 hours (Alkaline battery)
Weight: 144g (without battery)
Dimension: 57x26x149mm
Packaging information
Packing: blister + card
Standard quantity per carton: 60 pcs.
Standard Carton Sise: 48x47x40CM
Standard carton gross weight: 12KG
Note: not include battery
