HT121 Mini Digital Multimeter Auto DC AC Voltmeter Voltage Meter Frequency Capacitance Ohm Tester With Live Test
  • HT121 Mini Digital Multimeter Auto DC AC Voltmeter Voltage Meter Frequency Capacitance Ohm Tester With Live Test
  • HT121 Mini Digital Multimeter Auto DC AC Voltmeter Voltage Meter Frequency Capacitance Ohm Tester With Live Test

HT121 Mini Digital Multimeter Auto DC AC Voltmeter Voltage Meter Frequency Capacitance Ohm Tester With Live Test

Item No.: HT121
INQUIRY

Specification

Range

Accuracy

DC Voltage

4V/40/400V/600V

±(0.5%+3)

AC Voltage

4V/40/400V/600V

±(1.0%+3)

Resistance

400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ

±(1.0%+5)

Capacitance

4nF/40nF/400nF/4nF/40nF/400nF/4mF

±(4.0%+5)

Frequency

4Hz/40Hz/400Hz/4kHz/40kHz/400kHz/4MHz

±(1.0%+5)

Counts

4000 Counts

Range Detection

Automatic

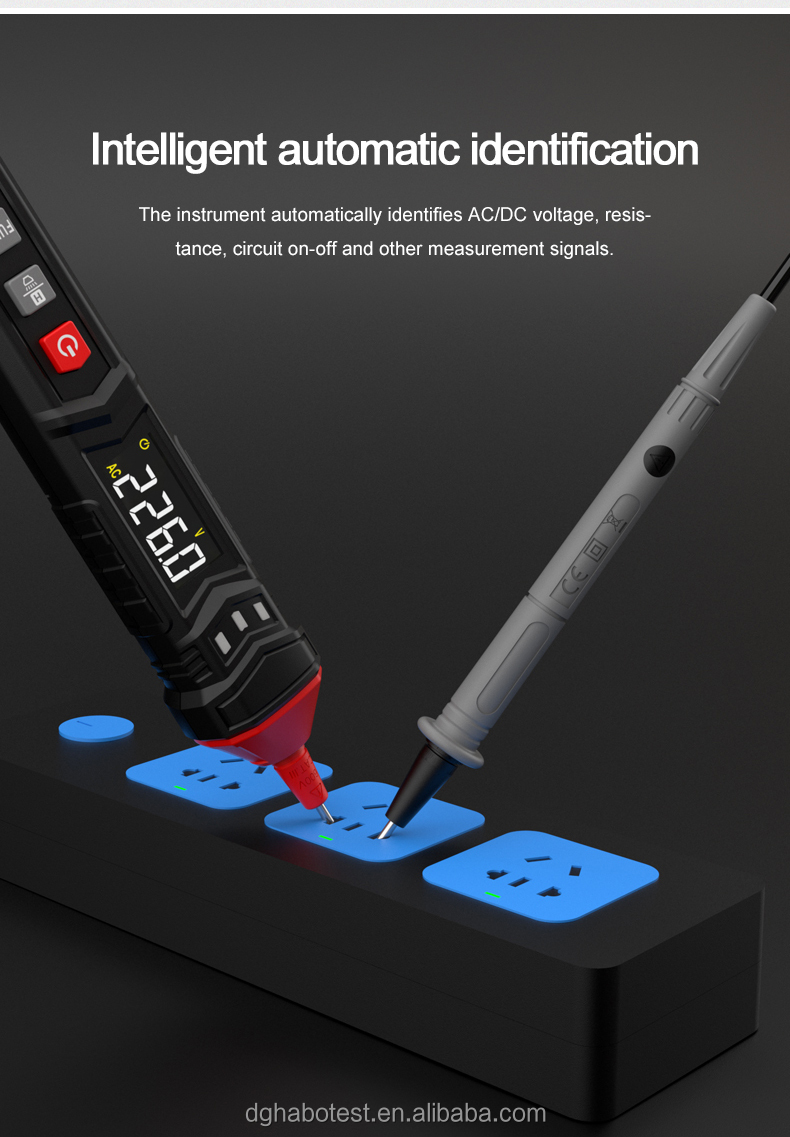

Smart Function (AC/DC Voltage,Resistance and Continuity

Yes

Bargarh

Yes

Live Test

Yes

Diode Test

Yes

Continuity Test

Yes

Three-phase sequence detection

Yes

True RMS

Yes

Low Battery Indication

Yes

Auto Power off

Yes

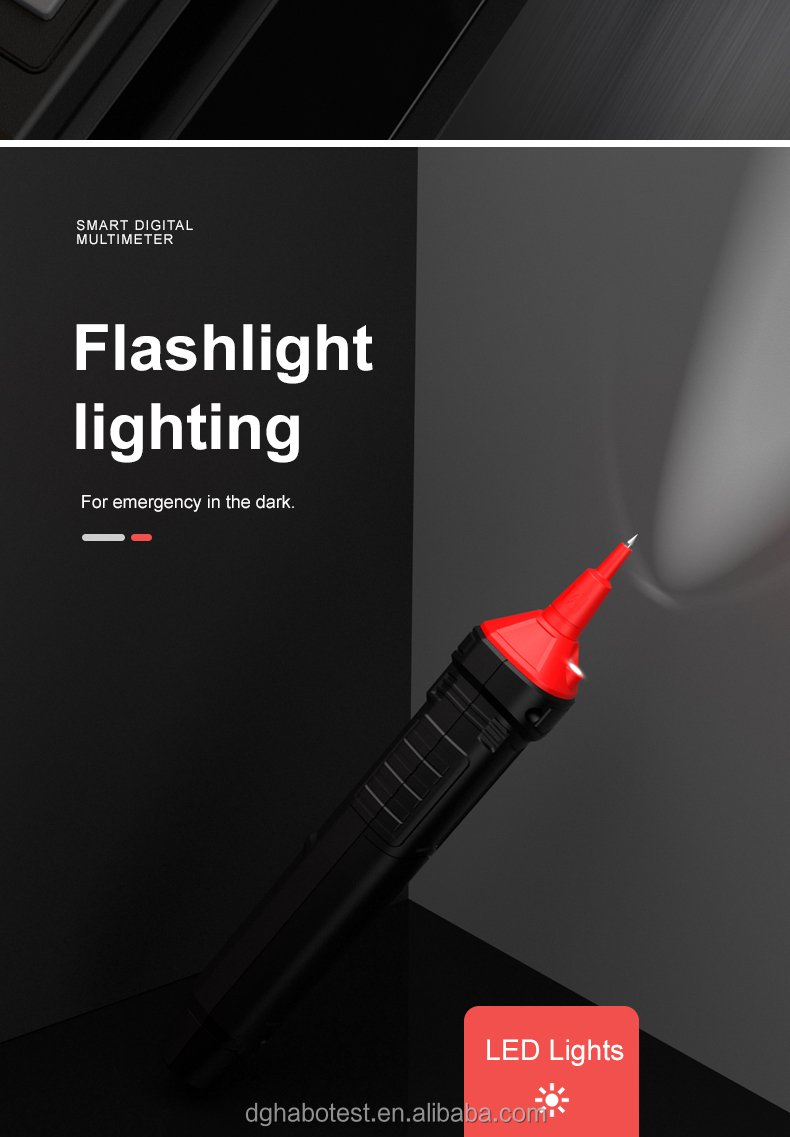

Flashing Light

Yes

Backlight

Yes

Power

2*1.5v AAABatteries

Weight

Approx 228g

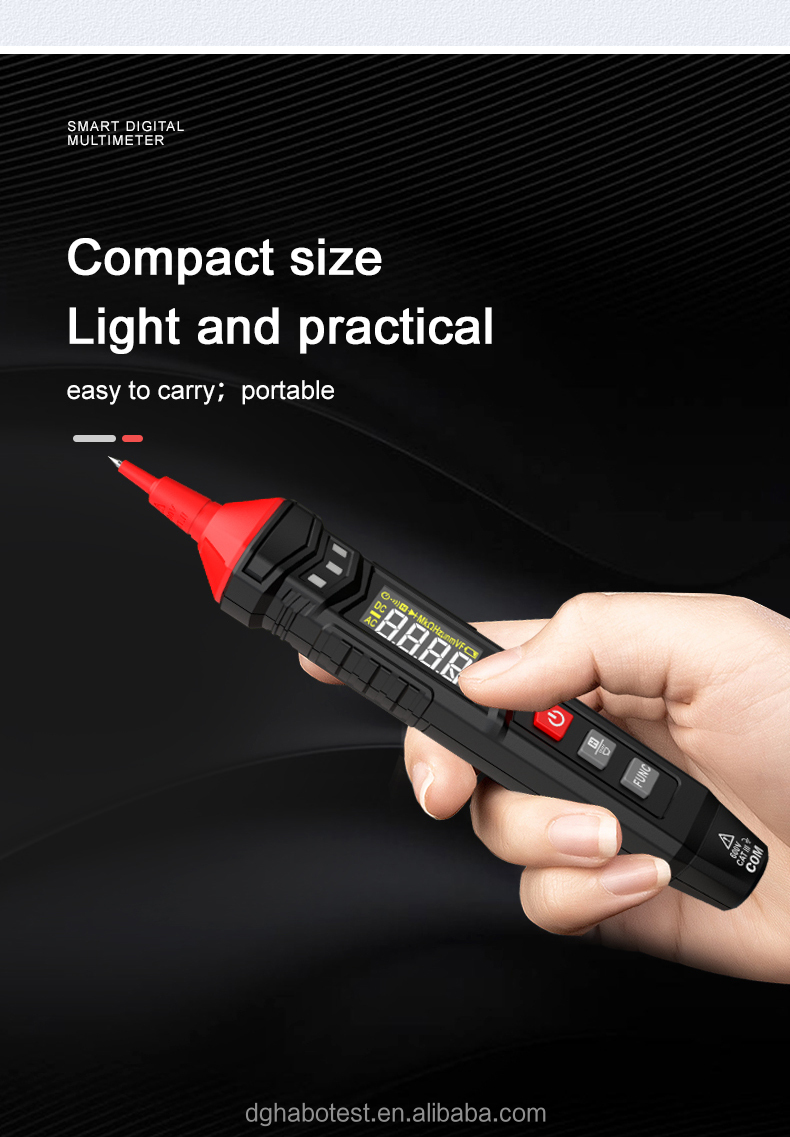

Size

176mm*30mm*28mm

Safety Rating

EN61010-1,-2-030 ,EN61326-1 CAT Ⅲ 600V
