Features:
This digital display counter has bright LED light, high accuracy, good stability, and easy installation.
The meter retains the number automatically when power off.
4 digit bright LED light, clear to read.
Good stability, high accuracy, and easy installation.
Counting value will be retained when power failure.
Wide application to automation equipment and test equipments, etc.
Specification:
Working voltage: DC 8-24V
DC current: 30mA
Counting: Plus or minus
Counting range: 0-9999
Digit number: 4 digit
Shell material: ABS

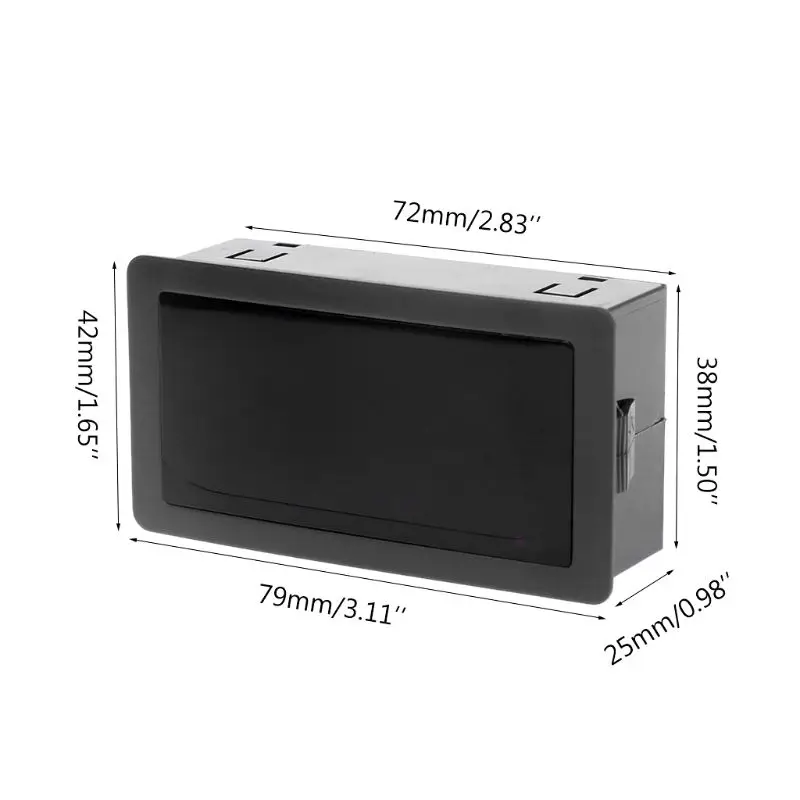

Product szie: 79x42x25mm/3.11x1.65x0.98inch
Installation size: 72x38mm/2.83x1.5inch
LED display color: Red
Quantity: 1 Set
Wire diagram:
Terminal 1: Positive
Terminal 2: Ground
Terminal 3: Signal Ground
Terminal 4: Clear
Terminal 5: Switch Pulse Signal
Terminal 6: Blue wire for increasing
Terminal 7: Black wire for decreasing
Note: The 5-Pin cable is used to connect with the counter.
Package includes:
1 x Digital Display Counter
1 x 5-pin Cable
