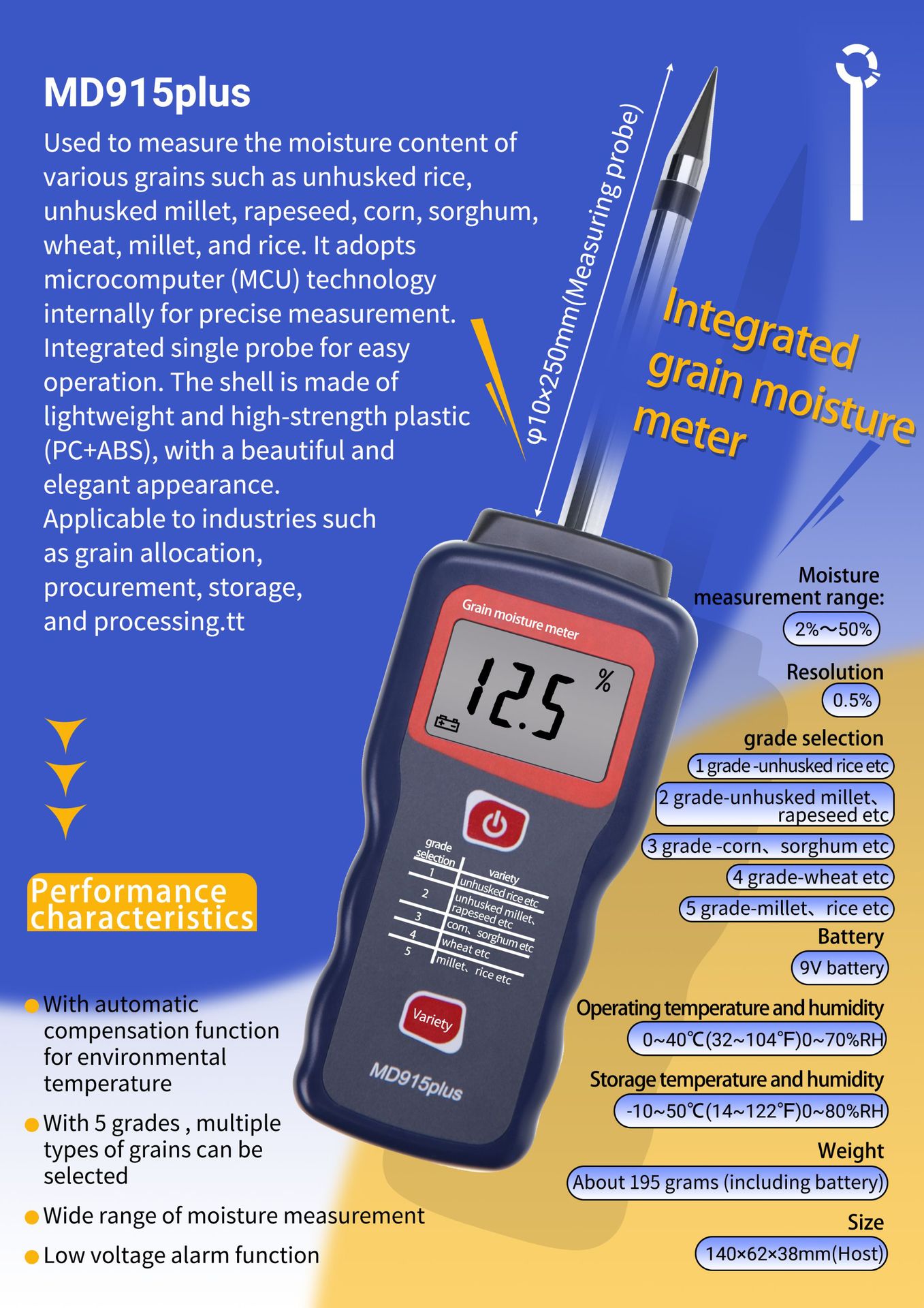

Parameters:
Humidity measurement range: 2% to 50%
Resolution: 0.5%
Level selection:
Level 1: Untamed rice
Level 2: Unshelled millet and rapeseed
Level 3: Corn, Sorghum.
Level 4: Wheat
Level 5: Xiaomi, rice
Battery: 9V battery (6F22)
Working temperature and humidity: 0-40 ℃ (32-104 ℉) 0-70% RH
Storage temperature and humidity: -10~50 ℃ (14~122 ℉) 0~80% RH
Weight: Approximately 195 grams (including battery)
Size: 140 × 62 × 38mm (host), diameter 10 × 250mm (test probe)
Operating instructions:
1. Power on:
Install the battery and press the 'power switch/test button' to turn on the device.
2. Level selection:
After turning on, the instrument automatically enters measurement mode and the probe is suspended. At this point, the instrument displays "0.0%".
When first turned on, the default test level is level 1, and pressing the "Variety" button displays "---1". Users set the required grade based on the tested grain type, and each time they press the "Variety" button, the grade will automatically increase by "1". After setting the level, press the "power switch/test button" button to enter the measurement mode of that level, and then start measuring.
3. Level memory function:
The level selection has a memory function, and the dashboard will automatically remember the level settings before shutting down. Even if the battery is replaced, the dashboard will still save the last used level and maintain that level after the next power on.
4. Measurement:
When measuring, insert the probe into the grain to be measured (the insertion depth should be at least 150 millimeters, and ensure that the probe is in full contact with the measuring object, otherwise accurate measurement cannot be made). At this point, the instrument displays the moisture content of the grain.
5. Close:
In measurement mode, press the 'power switch/test button' to turn off the device.
