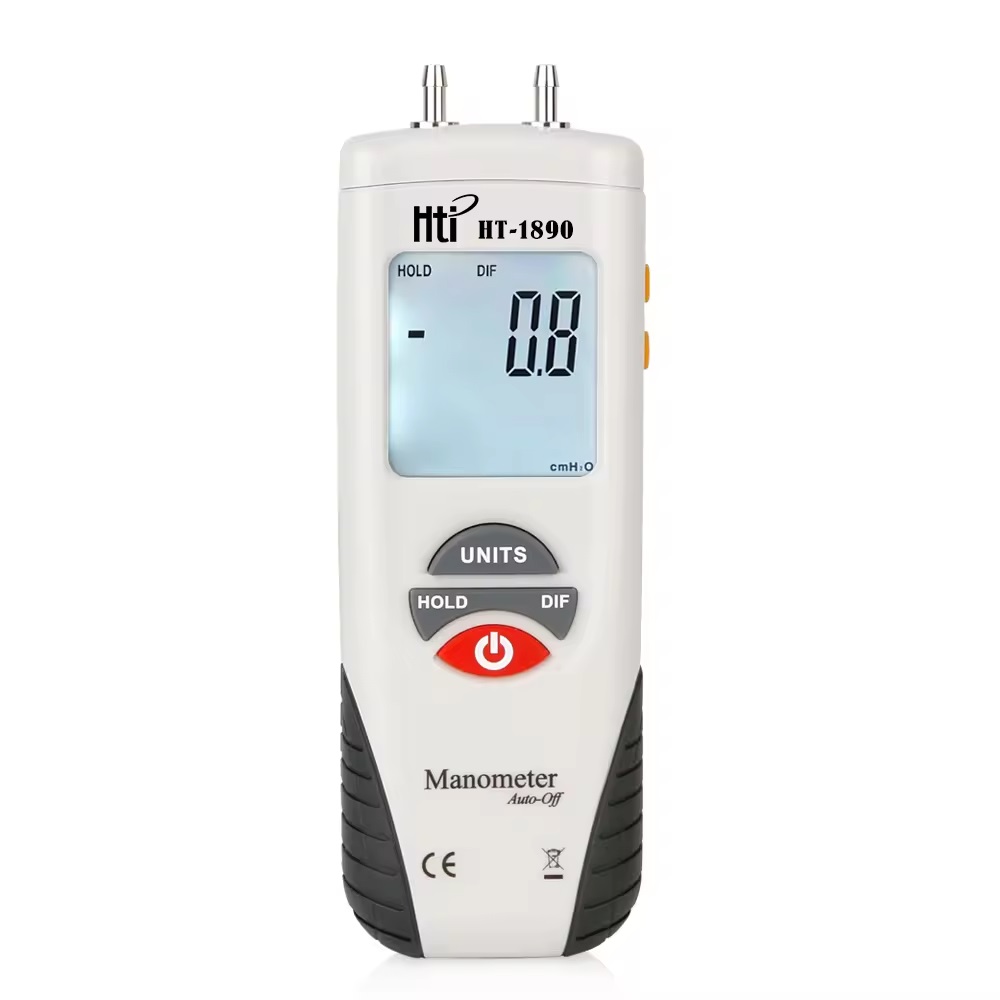

This product is widely used to measure the pressure of fans and blowers, air conditioning systems, filter resistance, furnace pressure, orifice differential pressure and so on. As well as monitoring blood pressure and respiratory pressure in healthcare equipment, troubleshooting of gas pressure systems

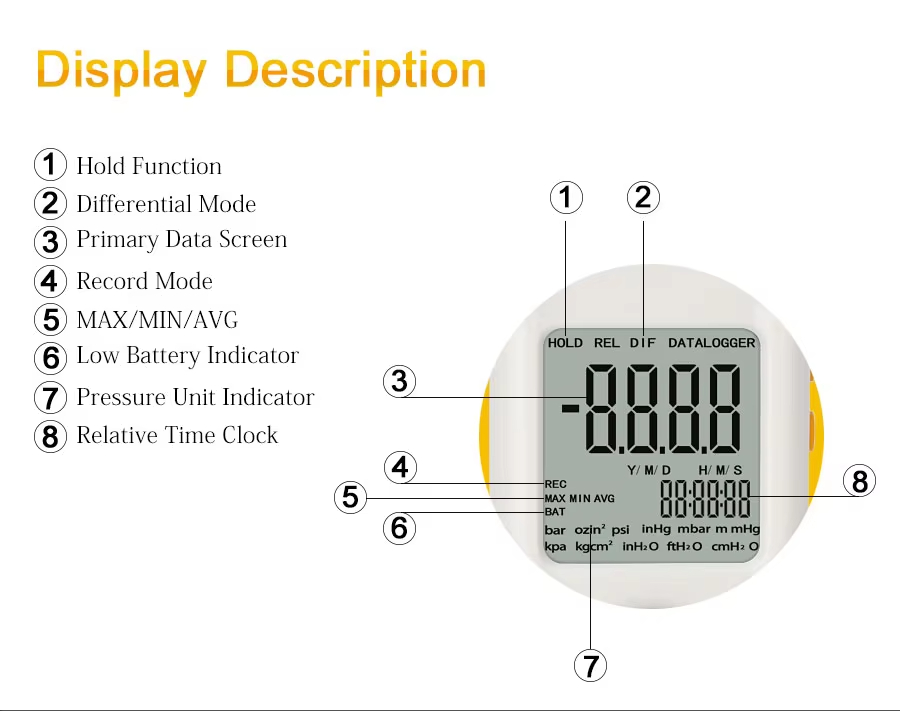

Large LCD backlight display, providing clear reading.

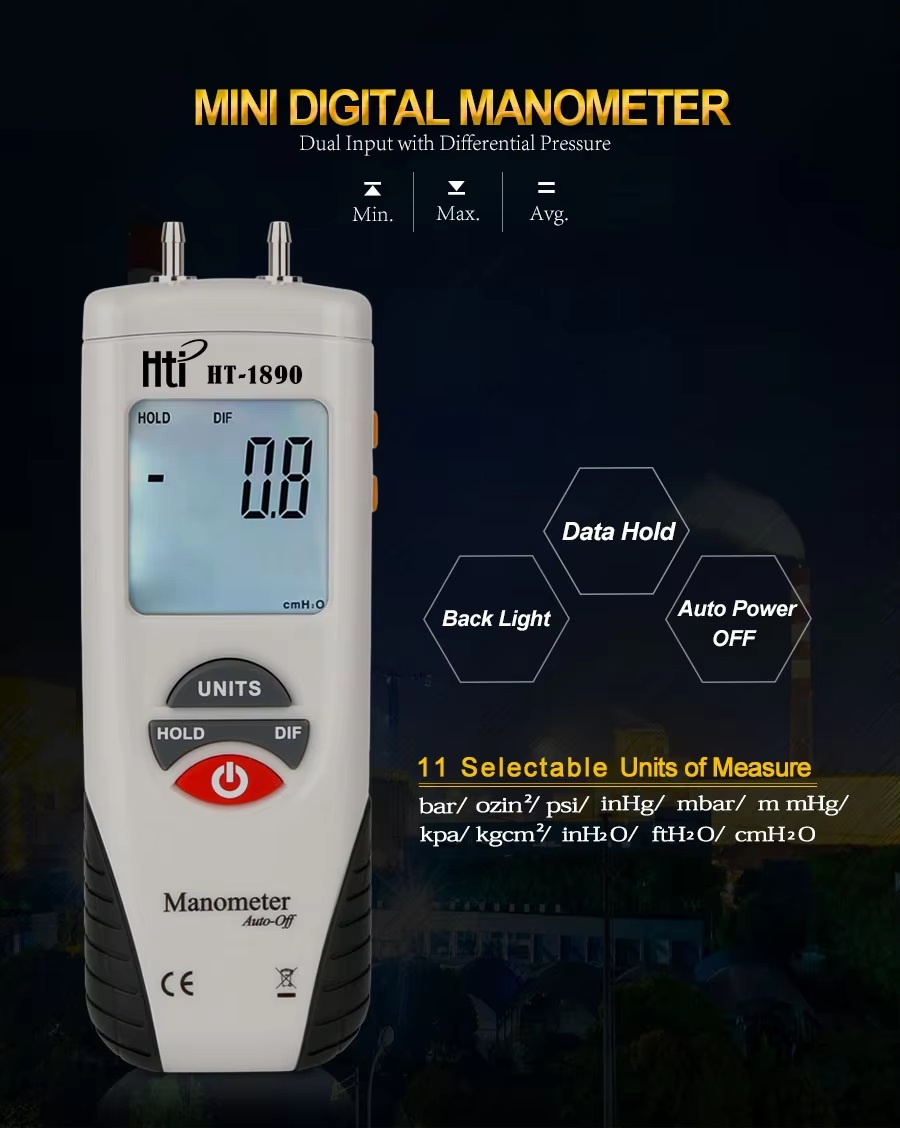

11 selectable units for measurement, convenient for use.
Max./Min./Avg values, and with a relative time clock.
Low battery indicator and pressure unit indicator.
Zero adjustment, offset and DIF function.
Data hold and automatically shutdown function.

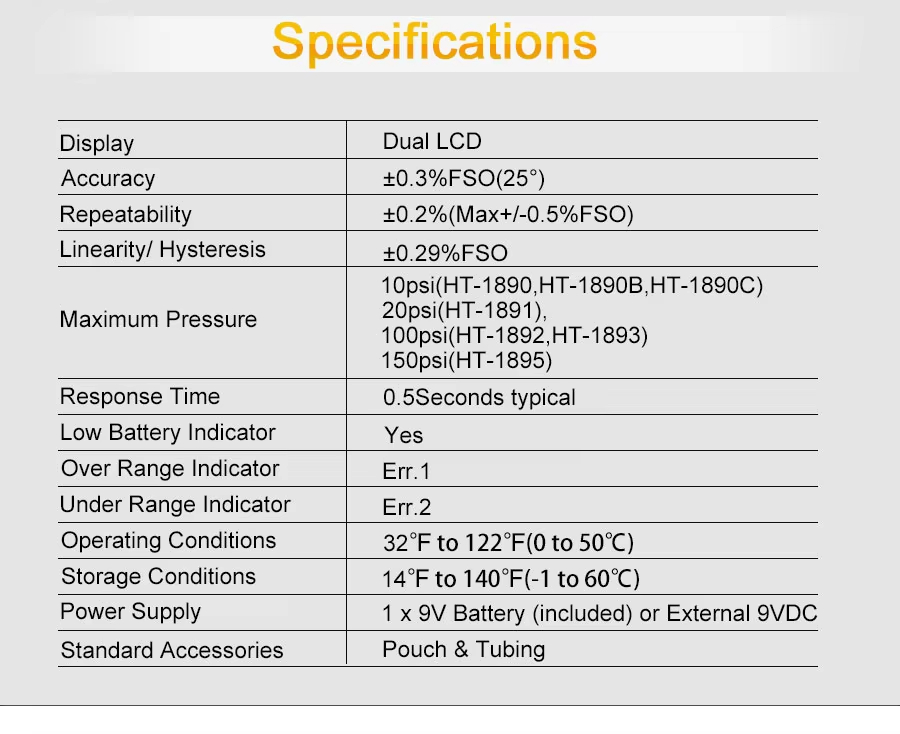

Product Description
Display: LCD Backlight
InH2O Range: ±55.4; Resolution: 0.01
Psi Range: ±2.000; Resolution: 0.001
Mbar Range: ±137.8; Resolution: 0.1
Kpa Range: ±13.79; Resolution: 0.01
InHg Range: ±4.07; Resolution: 0.001
MmHg Range: ±103.4; Resolution: 0.1
Ozin2 Range: ±32; Resolution: 0.01
FtH2O Range: ±4.612; Resolution: 0.001
CmH2O Range: ±140.6; Resolution: 0.1
Kgcm2 Range: ±0.140; Resolution: 0.001
Bar Range: ±0.137; Resolution: 0.001
Accuracy: ±0.3%FSO(25°C)
Repeatability: ±0.2%(Max. +/-0.5%FSO)
Linearity/Hysteresis: ±0.29%FSO
Max. Pressure: 10Psi
Response Time: 0.5s Typical
Low Battery Indicator: Yes
Over Range Indicator: Err. 1
Under Range Indicator: Err. 2
Operating Condition: 0-50°C / 32-122°F
Storage Condition: -1-60°C / 14-140°F

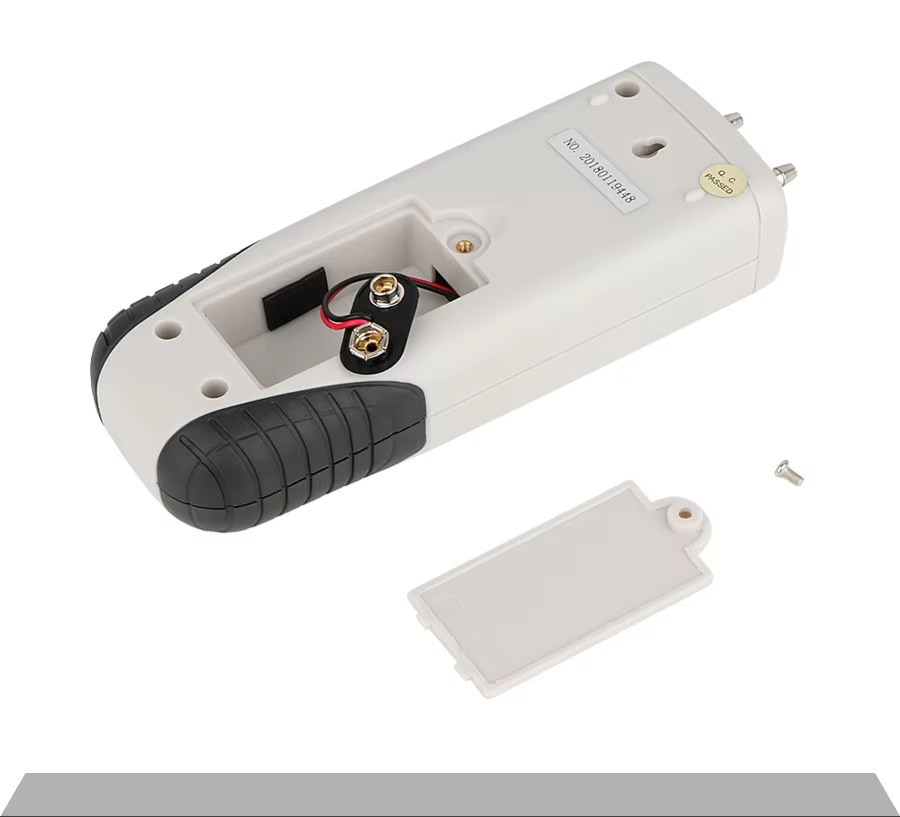

Power Supply: 1 * 9V Battery (NOT Included)
Item Size: 170 * 55 * 33mm / 6.7 * 2.16 * 1.3in
Item Weight: 270 g
Package Size: 25.5 * 14 * 6.5cm / 10 * 5.5 * 2.56in
Package Weight: 300g
