1.Power input: ACLO 0~240V/50-60Hz;
2.Temperature measurement range:-40~150℃/-40~302℉;
3.Working emwironment:Temperature:-10~55℃/Hunidity:25~85%;

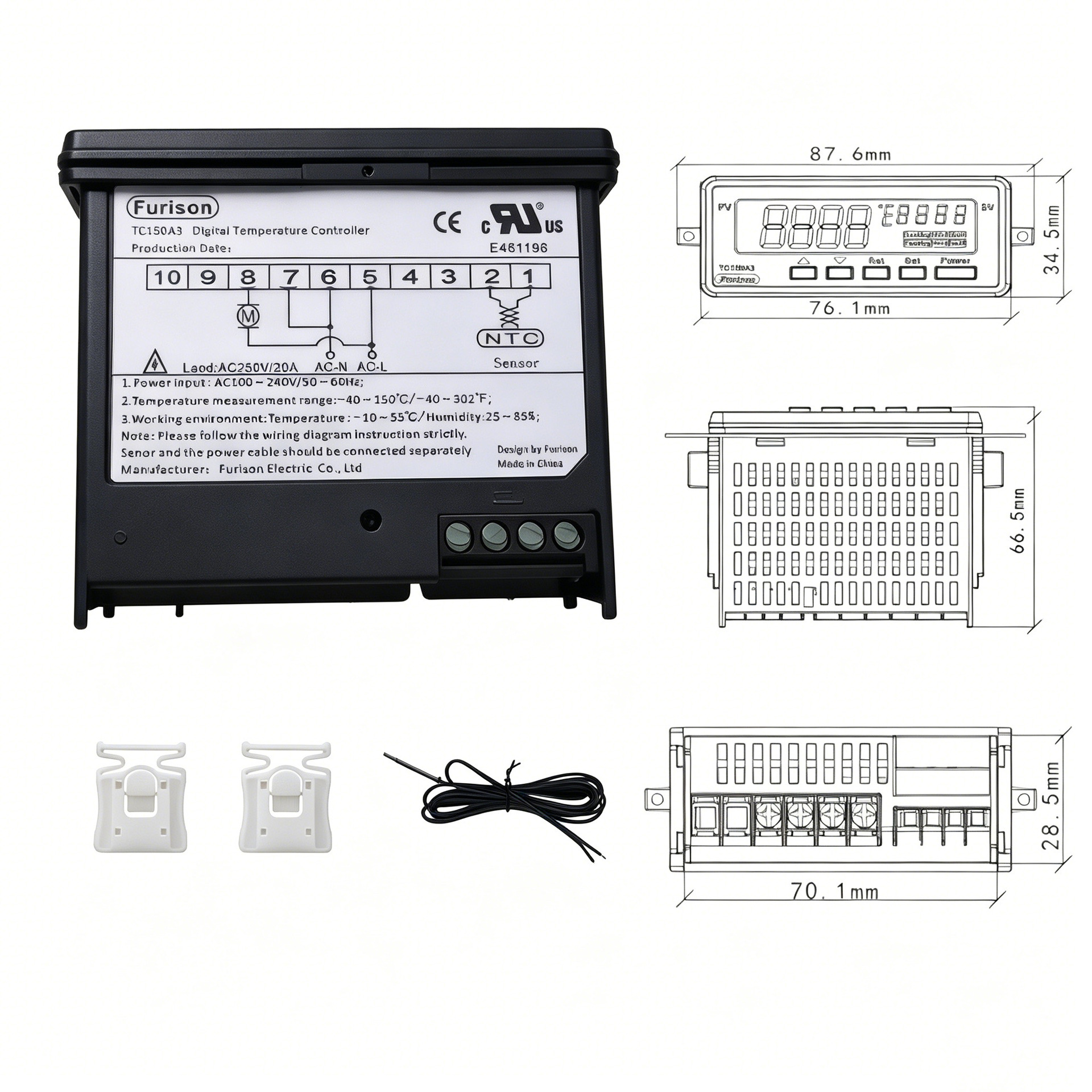

Note:Please follow the wiring digram instruction strictly. Senor and the power cable shoeld be connected separately.

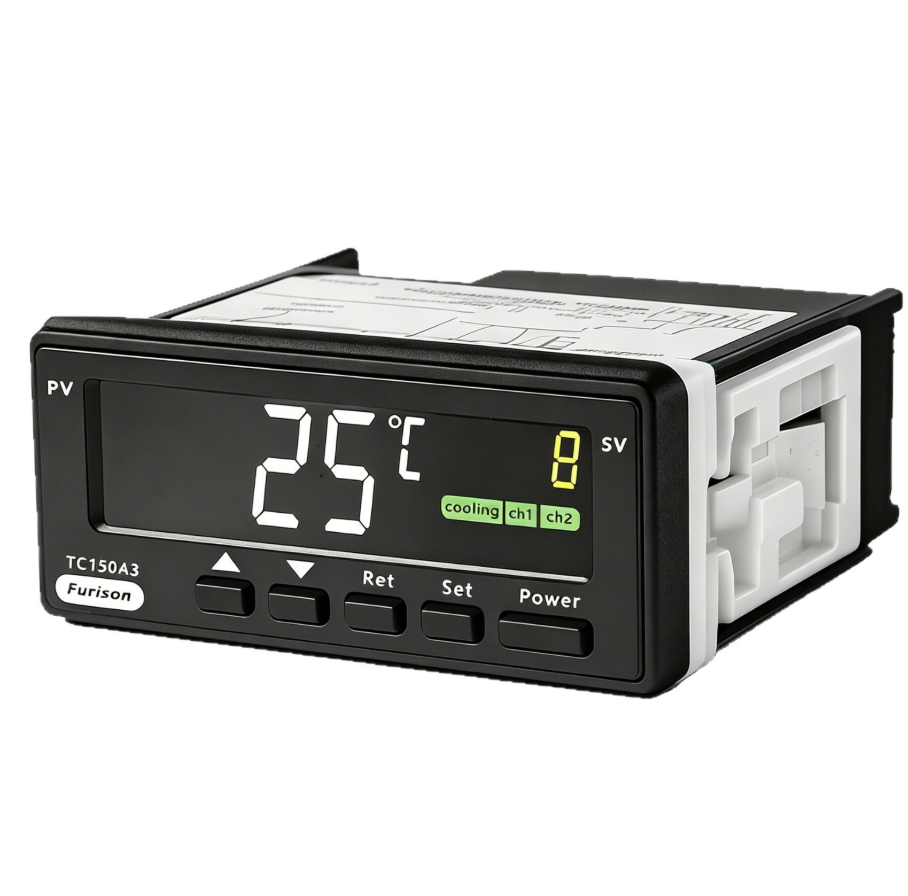

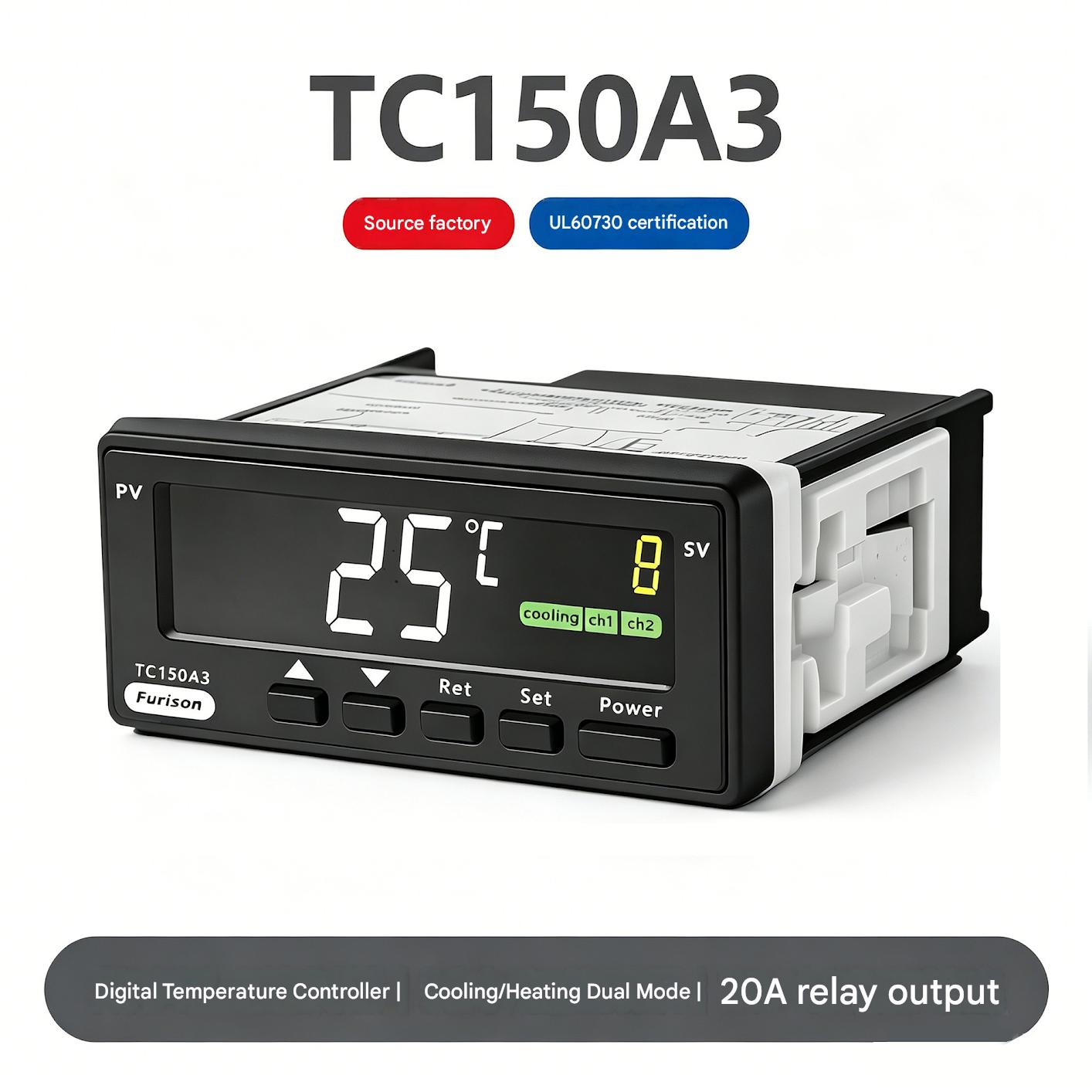

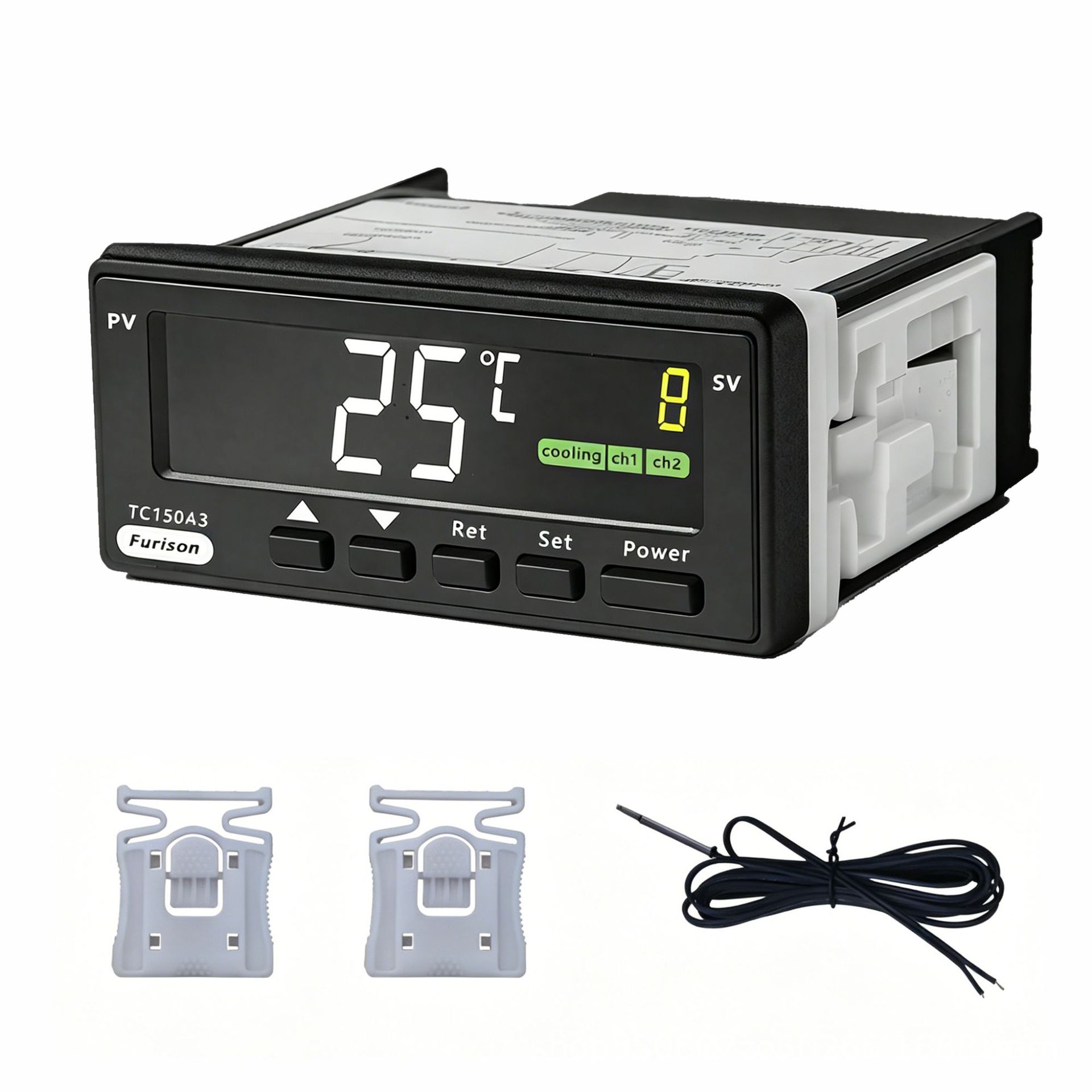

Type: TC150A3
Size:18*11*9 cm
Weight:258g
power supply: 100~240VAC±10%，50/60Hz
storage environment: -20~60 ° C/25~85% RH (without cold buffering)
working environment: -10~55 ° C/25~85% RH (without cold buffering)
measurement range: -40-150°℃C
scope of control: -40-150°C
resolution: 1°C/F
precision: ±1°℃C/±2°F
Job Type: 1-channel NT sensor
output type: 1-channel mechanical relay output (normally open: 20A/250VAC), with a lifespan of up to 100000 cycles
power consumption: Less than 3W
waterproof rating: IP64
1.Power input: ACLO 0~240V/50-60Hz;
2.Temperature measurement range:-40~150℃/-40~302℉;
3.Working emwironment:Temperature:-10~55℃/Hunidity:25~85%;
Note:Please follow the wiring digram instruction strictly. Senor and the power cable shoeld be connected separately.
Type: TC150A3
Size:18*11*9 cm
Weight:258g
power supply: 100~240VAC±10%，50/60Hz
storage environment: -20~60 ° C/25~85% RH (without cold buffering)
working environment: -10~55 ° C/25~85% RH (without cold buffering)
measurement range: -40-150°℃C
scope of control: -40-150°C
resolution: 1°C/F
precision: ±1°℃C/±2°F
Job Type: 1-channel NT sensor
output type: 1-channel mechanical relay output (normally open: 20A/250VAC), with a lifespan of up to 100000 cycles
power consumption: Less than 3W
waterproof rating: IP64
