THE01999P 8-in-1 Smart Soil Tester IP68 Waterproof Soil Sensor with APP Monitoring for Moisture Temperature pH EC NPK Fertility Analyzer

Item No.: THE01999P
INQUIRY
8-in-1 Soil Testing: Measures soil moisture, temperature, pH, electrical conductivity (EC), nitrogen (N), phosphorus (P),
potassium (K), and fertility

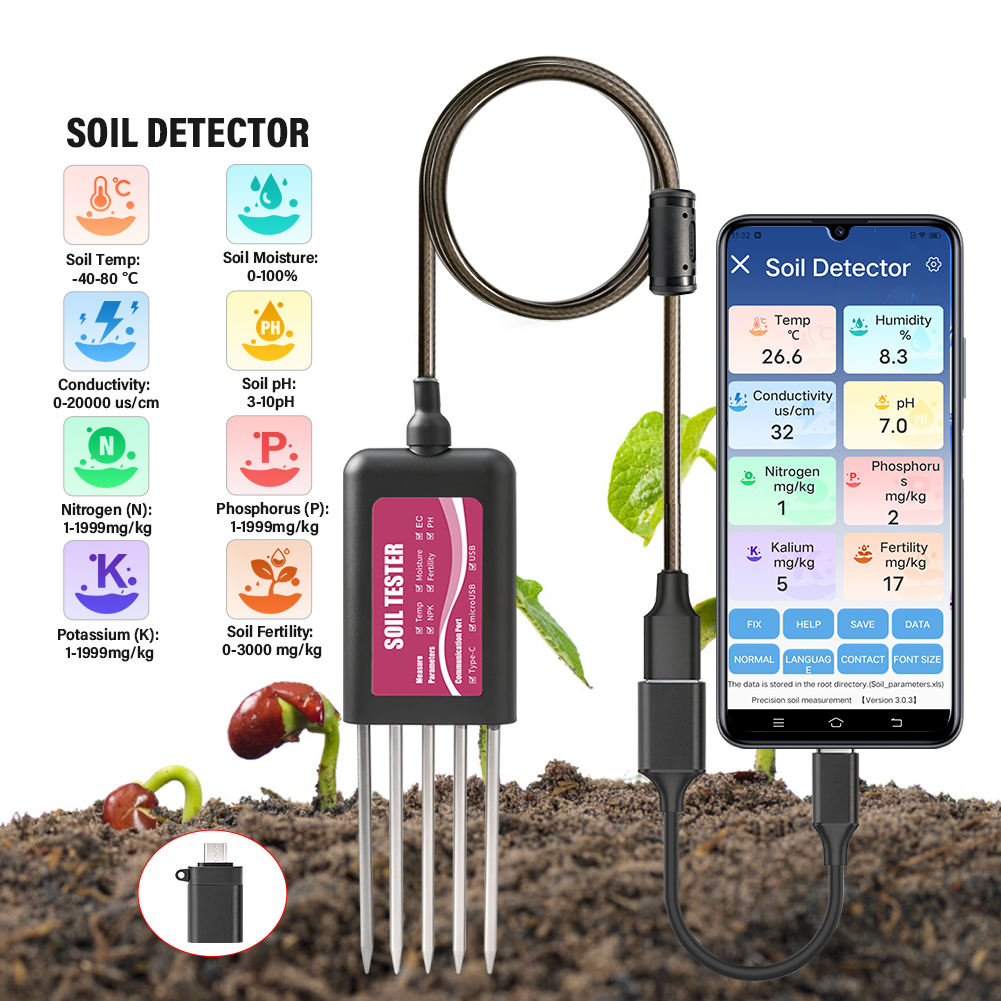

Real-Time APP Monitoring: Connect to mobile phone for instant data display and analysis

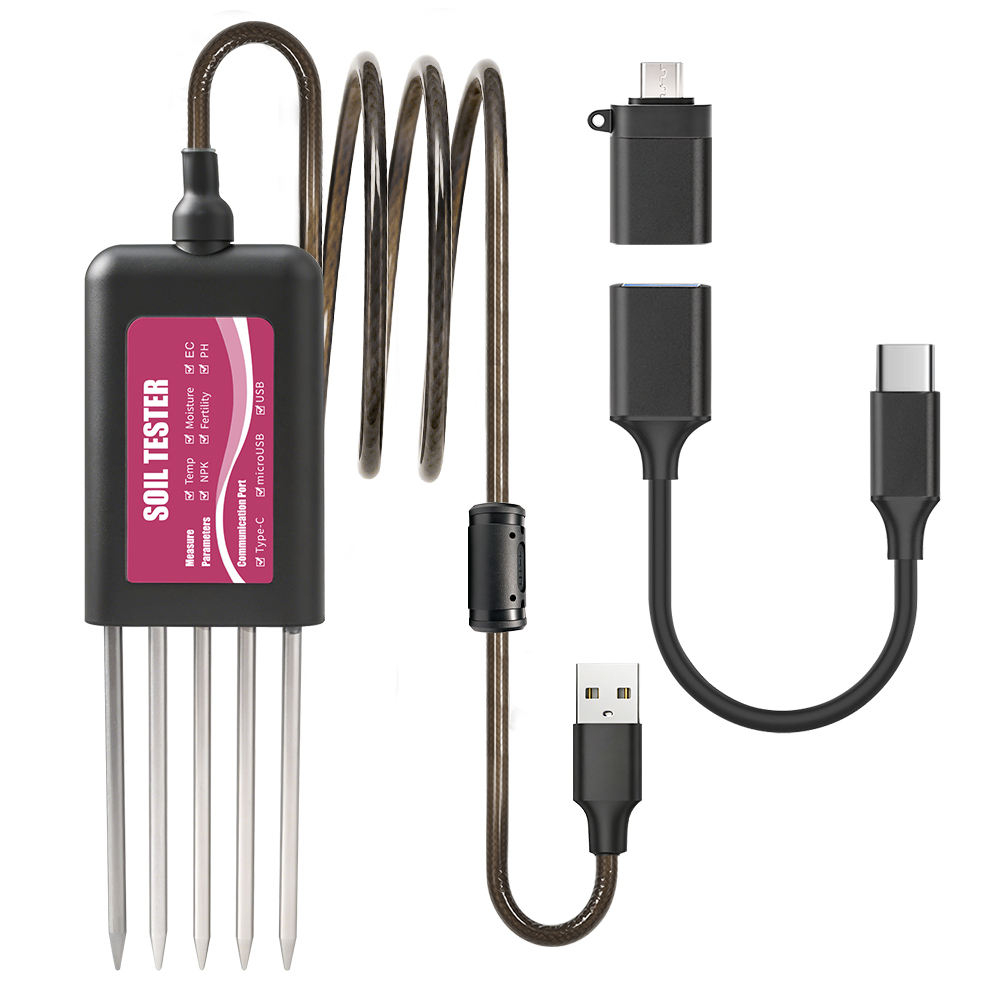

USB Powered Design: No battery required, powered directly by smartphone (Type-C/Micro USB compatible)

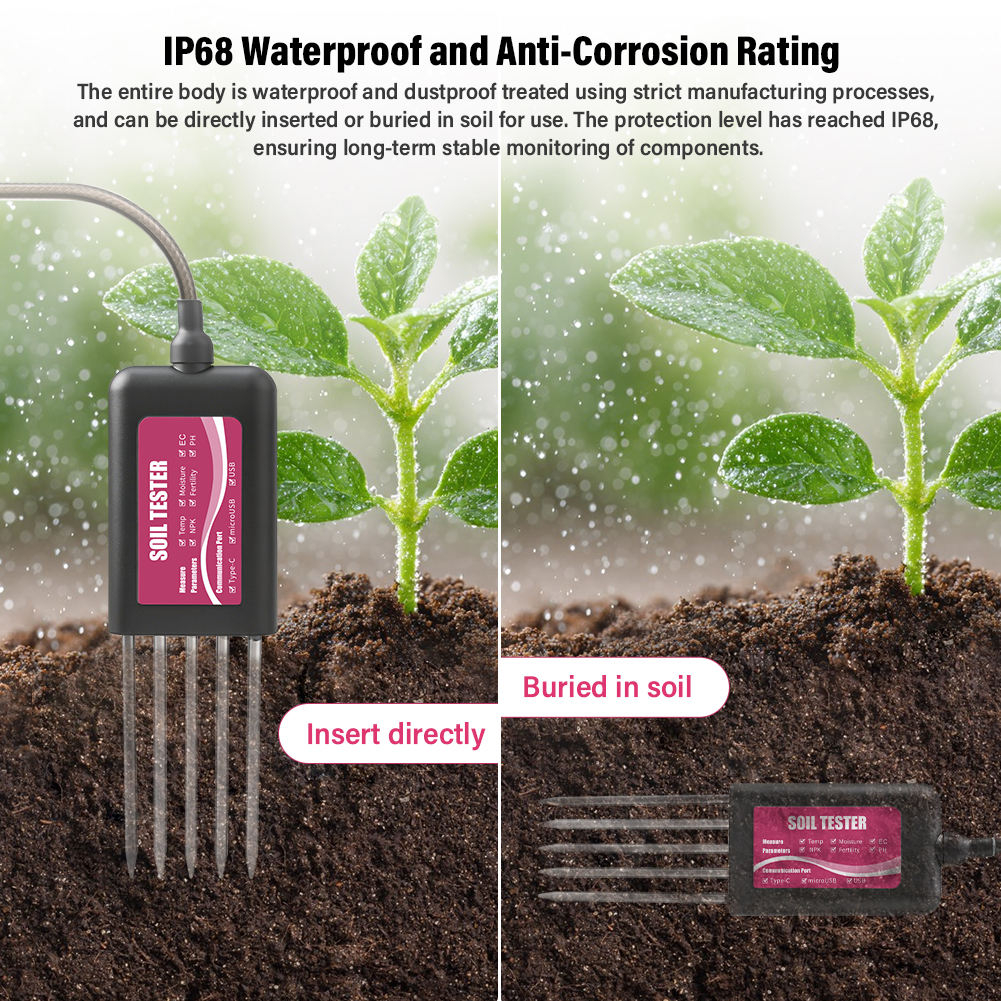

 IP68 Waterproof & Dustproof: Suitable  for long-term soil insertion and harsh outdoor environments High-Quality 316L Stainless Steel Probes: corrosion resistance,suitable for all soil types
Epoxy Resin Sealing Technology: Prevents moisture intrusion, ensures long-term durability High
Precision Sensors: Fast response, accurate and stable readings
Data Storage & Export: Supports saving and exporting data for further analysis
Plug & Play: Easy operation, no complicated setup required
Wide Application: Ideal for agriculture, greenhouse, gardening, lawn care, and research

Product Parameters
• Interface: USB + Micro USB (Android), Type-C (Huawei)
• Supported Systems: Android, HarmonyOS (Not compatible with iOS)
• Maximum Power Consumption: 0.5W
• Operating Temperature: -20°C to +60°C
• Core Chip Temperature: 85°C

Conductivity (EC)
• Range: 0 – 20000 µS/cm
• Resolution: 1 µS/cm
• Accuracy: ±3% FS (0–10000 µS/cm), ±5% FS (10000–20000 µS/cm)

Soil Moisture
• Range: 0 – 100%
• Resolution: 0.1%
• Accuracy: ±2% (0–50%), ±3% (50–100%)

Soil Temperature
• Range: -40°C to 80°C
• Resolution: 0.1°C
• Accuracy: ±0.5°C (at 25°C)

Soil pH
• Range: 3 – 10 pH
• Resolution: 0.1 pH
• Accuracy: ±0.3 pH

NPK (Nitrogen, Phosphorus, Potassium)
• Range: 1 – 1999 mg/kg (mg/L)
• Resolution: 1 mg/kg (mg/L)
• Accuracy: ±2% FS

Soil Fertility
• Range: 0 – 3000 mg/kg (mg/L)

Additional Features
• Conductivity Temperature Compensation: Built-in sensor, compensation range -20°C to 50°C
• Protection Level: IP68 (Waterproof & Dustproof)

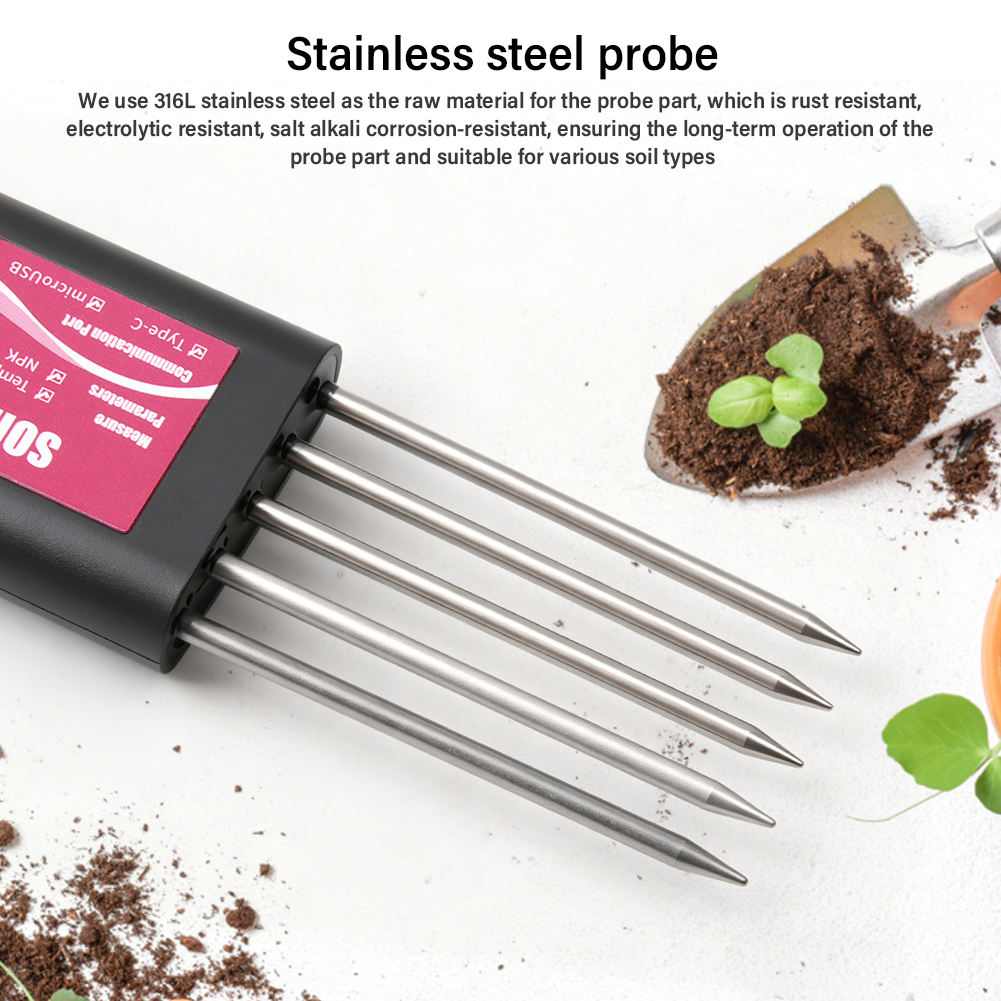

• Probe Material: Anti-corrosion special electrode (316L stainless steel)
• Sealing Material: Black flame-retardant epoxy resin
• Default Cable Length: 1.5 meters
• Product Dimensions: 45 × 15 × 123 mm
