TL-300 3-in-1 New Digital Mini LCD Anemometer Meter Wind Speed Gauge & Temperature Thermometer

Features:

• Air Velocity Measurement Range: 0.3 to 30m/s (±5%)
• Temperature Measurement Range: -10 to 50°C (±1°C)
• Humidity Measurement Range:0%-99% (±5% at 20%-90%)
• Air Velocity Unit Selection: m/s, ft/min, knots, km/h, mph
• Beaufort scale
• °C / °F selection
• Max/Min/Avg Reading Selection
• Hold Function
• Wind-chill Indication
• Low Battery Warning
• Auto Power Off (with override function)
• Calibration Function *Use with caution, please read the instructions carefully*
• Resolution: 0.1m/s, 1%,0.1℃
• CE Certified & RoHS Compliant

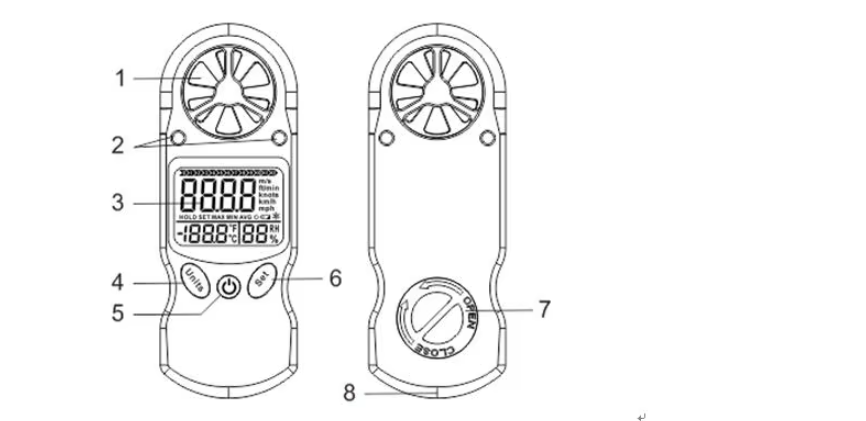

1. Vane Impeller

2. Temperature & Humidity Sensors

3. LCD with Blue Backlight

4. Wind Speed Unit & Temperature selection

5. Power Button

6. Set function Button

7. Battery Cover

8. Lanyard Attachment Point

Specification:

Set Includes:

• Meter
• Soft Case
• Wrist Lanyard
• Battery (Not included due to rule of express company)
• User Manual (English)

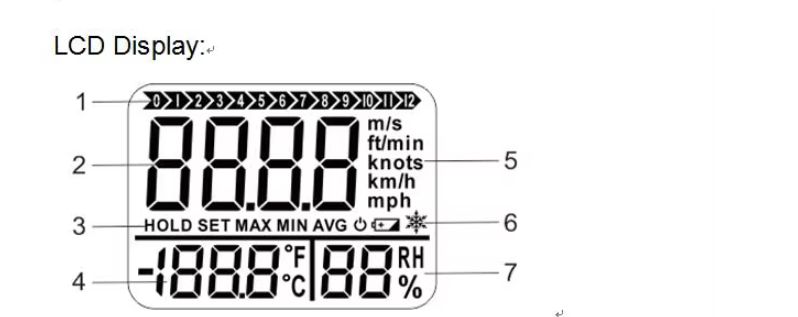

LCD Display:



1. Beaufort Scale

2. Primary Display for Air Velocity

3. HOLD: Displayed when meter is on hold function

  SET: Displayed when meter is in calibration mode

  Max: When is this mode the meter will display the maximum speed the Air velocity has reached

  Min: When is this mode the meter will display the  speed the Air velocity has reached

  AVG: When is this mode the meter will display the average speed the Air velocity has reached

4. Temperature Display (℃/℉ switchable)

5. Air Velocity measurement options:

  m/s: Meters per Second

  ft/min: Feet per Minute

  knots: Knots

  km/h: Kilometers per Hour

  mph: Miles per Hour

6.   Displayed when the Auto Power Off Function is overridden

   This warning will display when the battery is low on power
   This warning displays to indicate wind chill when the temperature is below °C

7.  Relative Humidity Display (RH)

Caution:

• This meter is accurate at low and mid-range air speeds. Consistent use at very high speeds, i.e. from the window of a fast moving car will damage the impeller’s bearing and reduce accuracy.
• This meter is not a personal safety device.

Trouble Shooting:

1. Power on but no display or the display disappears

  a. Check the battery is in place with good contact to the pins and the correct way up.

  b. Remove battery for one minute and re-install.

  c. Replace the battery.

2. For all other issues please contact your supplier.

Pictures:
