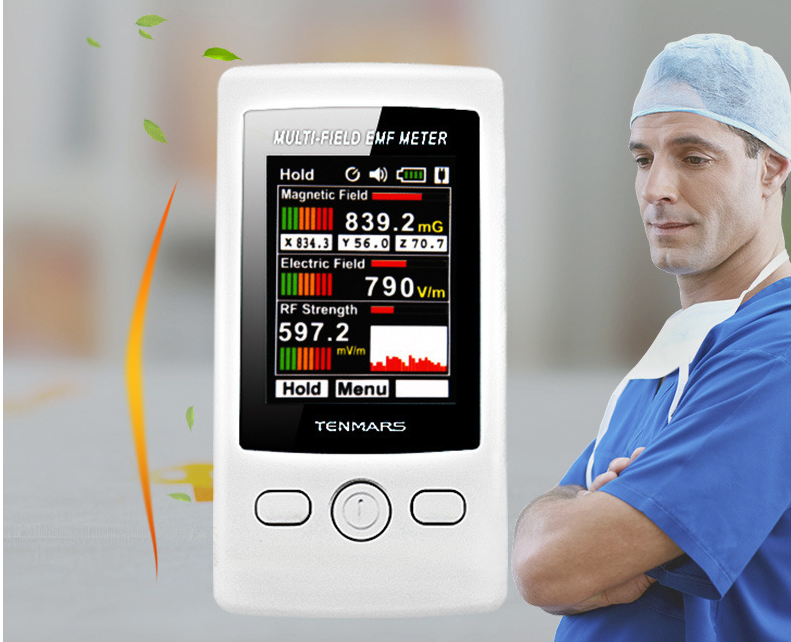

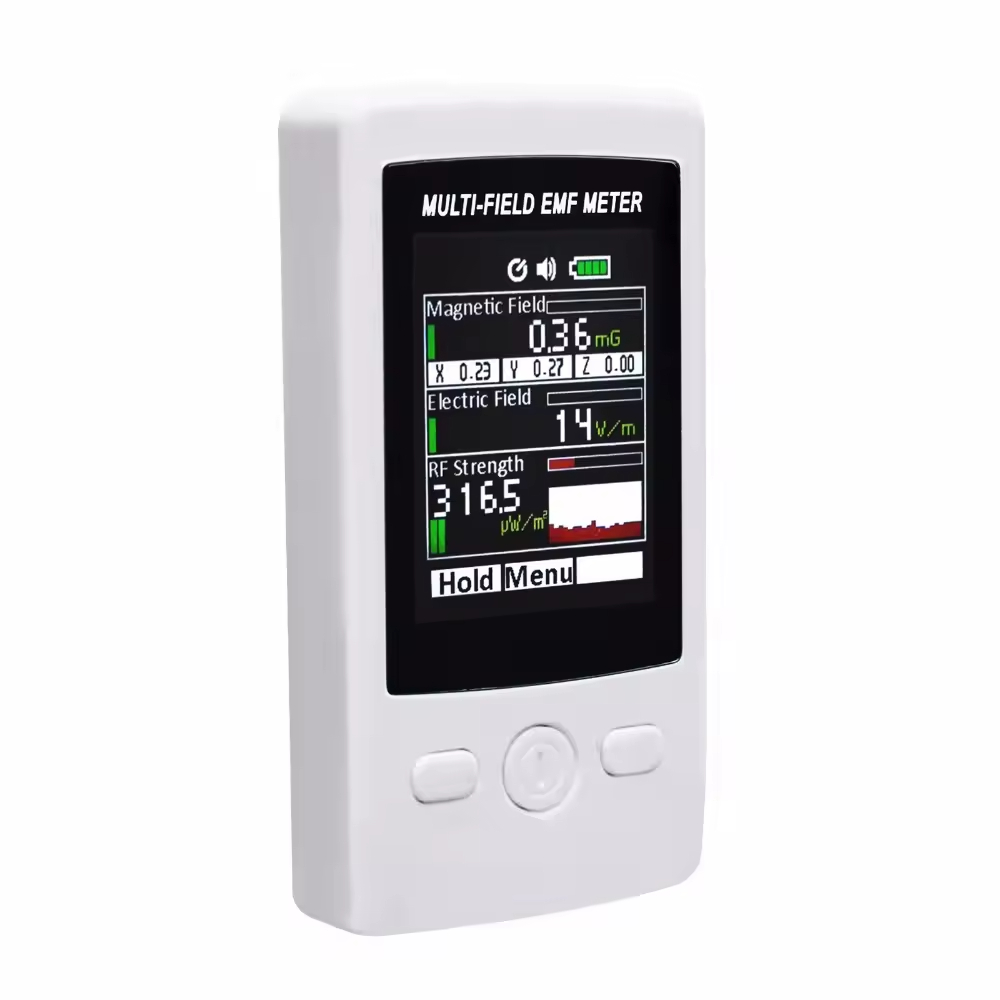

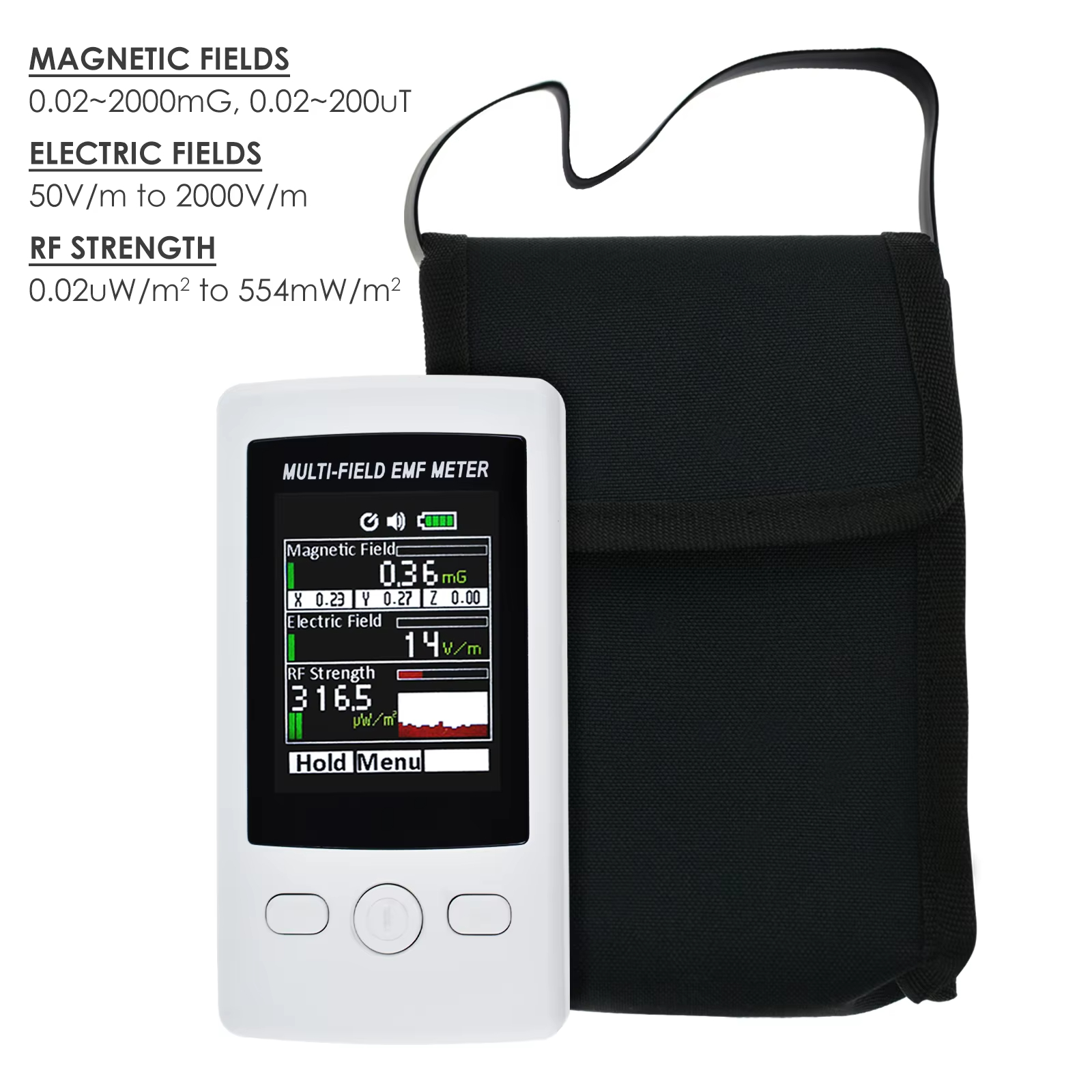

This Multi-Field EMF Meter is easy to operate and reliable in measurements. With multiple sensors inside, it can be used to test the strength of Electromagnetic field(low frequency), Electric field(low frequency) and RF Electric field(high frequency).
| Magnetic Field |
| Sensor Type |
LF Magnetic Fields Triple axis(X,Y,Z) |
| Range |
0.02~20mG, 0.02~200µT. |
| Resolution |
0.01/0.1/1 mG or 0.01/0.1/1 µT. |
| Frequency response |
50Hz/60Hz |
| Accuracy |
±(15%+100dgt) |
| Electric Fields |
| Sensor Type |
LF Electric Fields |
| Range |
50V/m to 2000V/m |
| Resolution |
1 V/m |
| Frequency response |
50Hz/60Hz |
| Accuracy |
± (7% + 50dgt). |
| RF Electric Strength |
| Sensor Type |
RF Strength |
| Range |
0.2μW/m²~554mW/m² |
| Resolution |
0.2μW/m², 0.02μA/m, 0.2mV/m, 0.02μW/cm², 1dB |
| Frequency range |
50MHz to 3.5GHz. |
| Accuracy |
± 2dB at 2.45GHz |
Technical Parameters

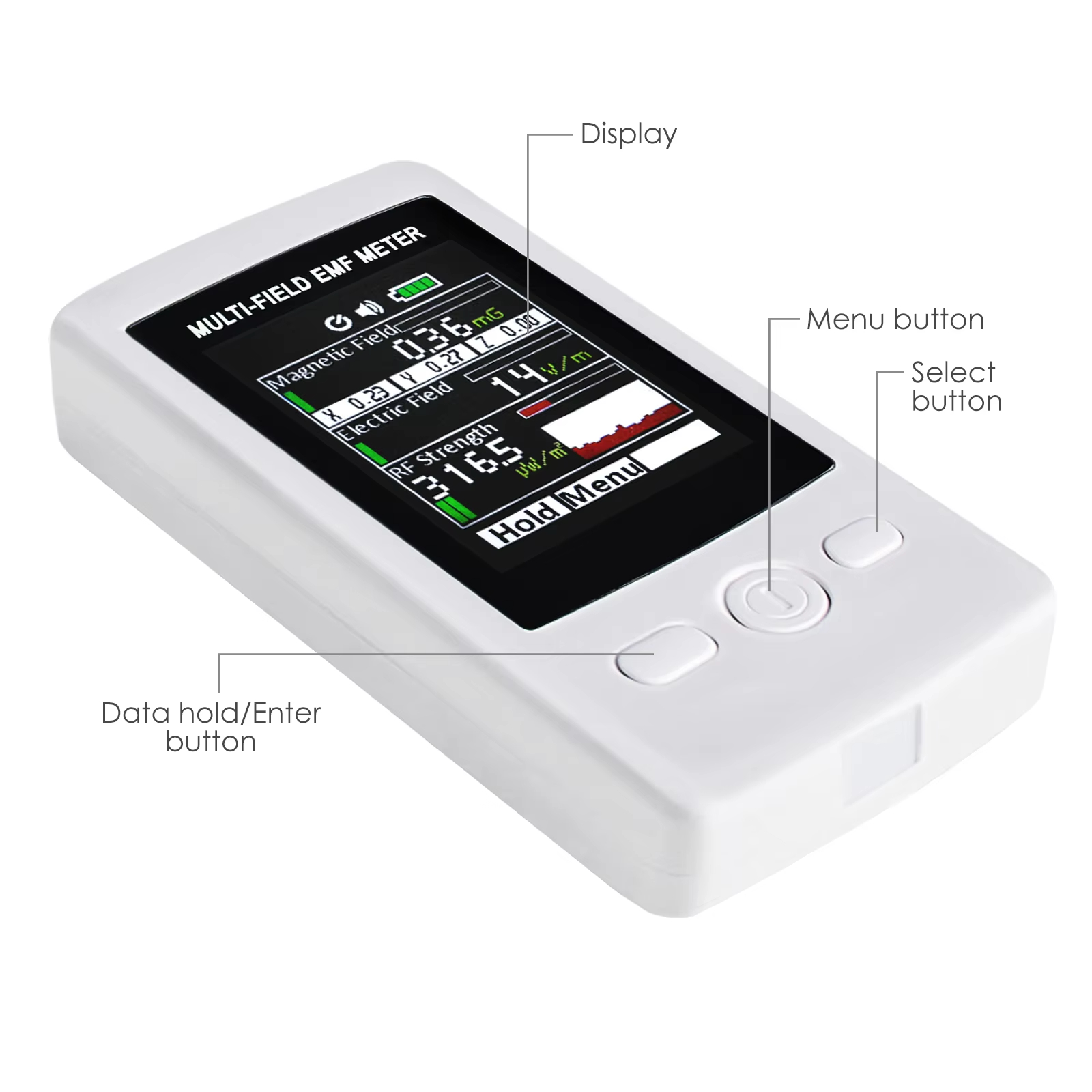

* Data Hold Indication
* Battery Status Indication
* Auto Power Off Time Setting: No; 1; 3; 5; 10; 15; 30
* Over Load display
* Keys/Alarm Sounds options: Enable(Sound Level setting:1/2/3); Disable
* Audible Key tone alarm: Buzzer

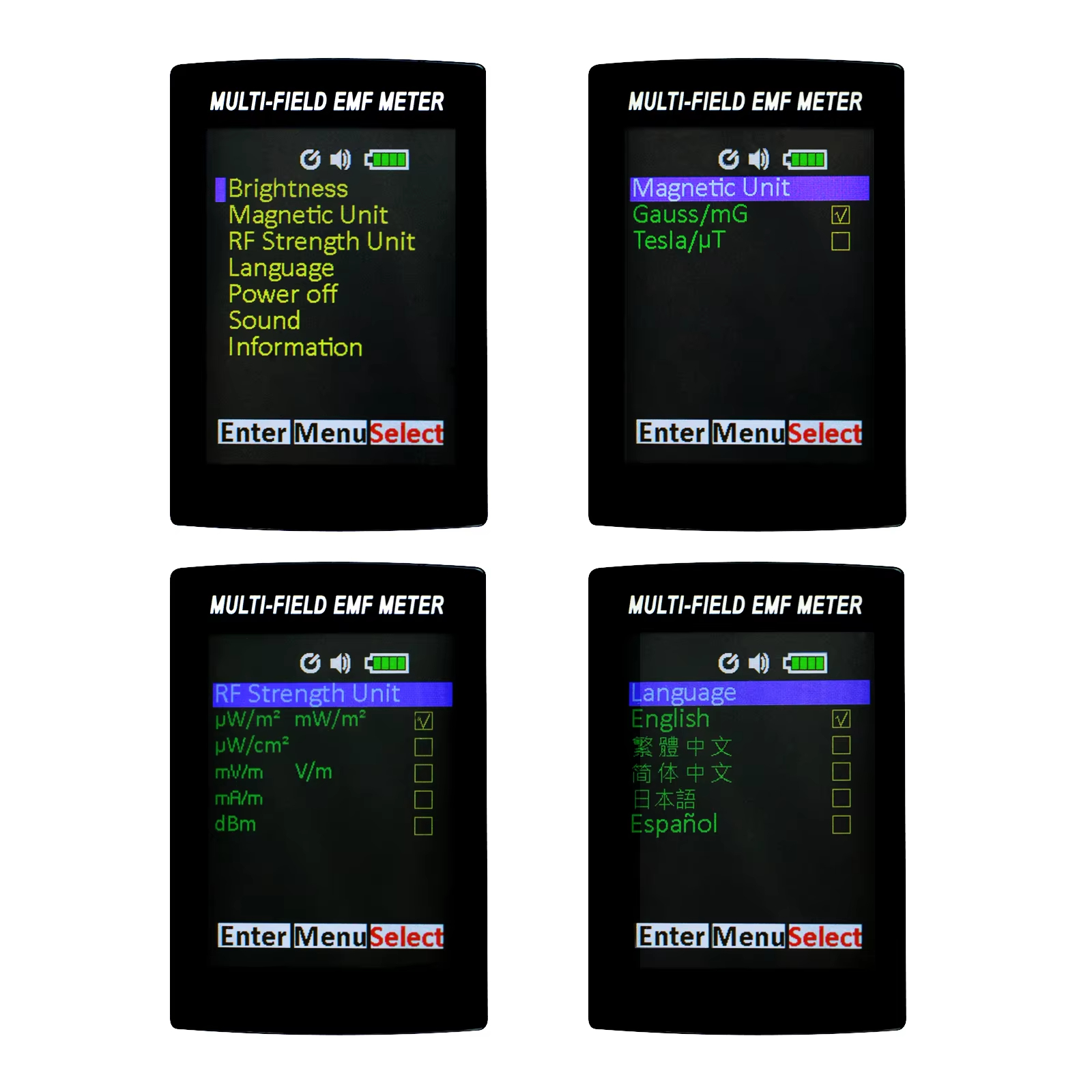

* LCD display Brightness options: Low, Middle, High
* Magnetic unit: Gauss(mG) or. Tesla(uT)
* RF Strength Unit: (uW/m² ~mW/m²) (μW/cm²) (m V/m ~V/m) (mA/m) (dBm)
* RF Historical Records: Up to 20 groups

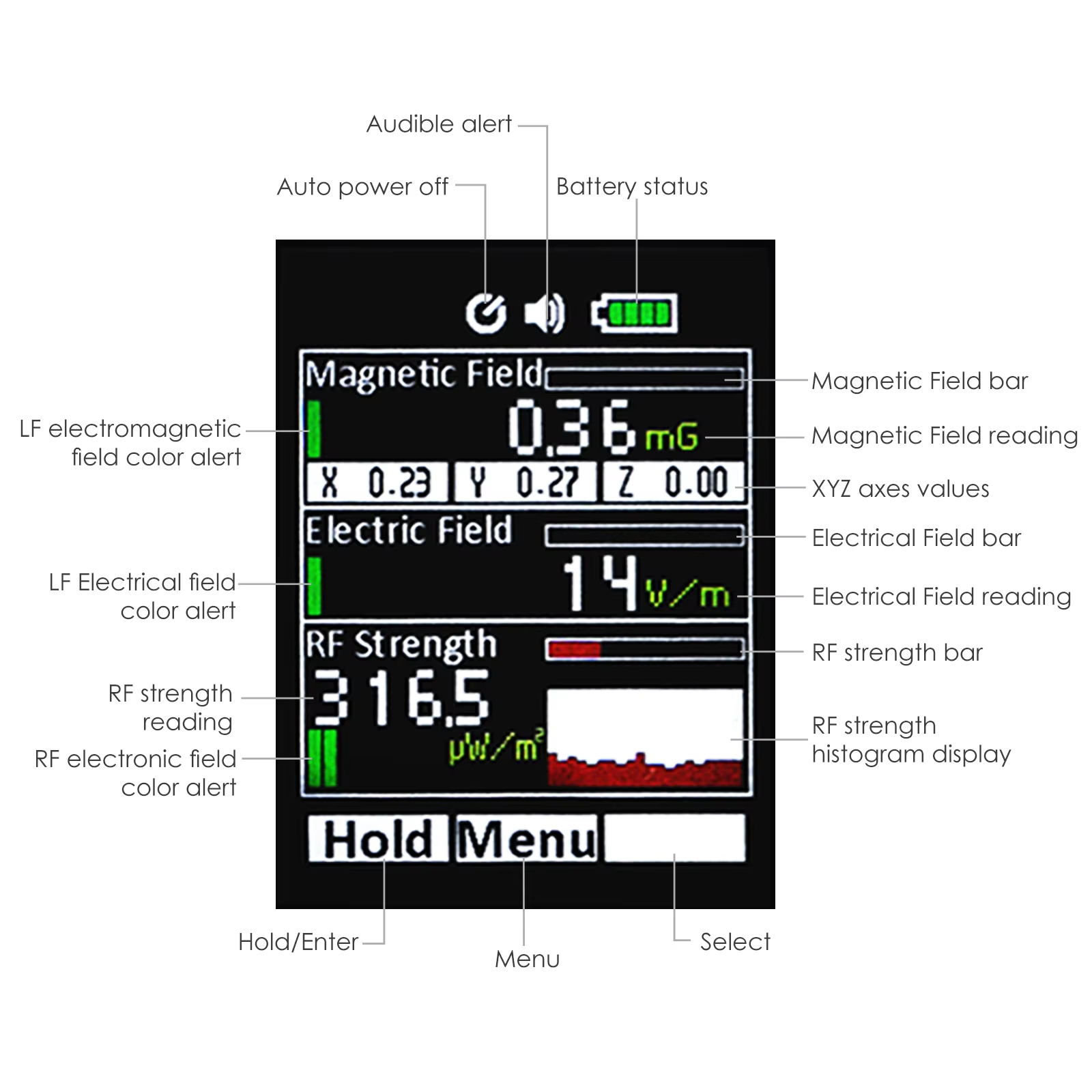

* Simultaneously Display the Electromagnetic Field Readings of individual and aggregated XYZ axes
* Sample Rate: 6 seconds per time
* Power Supply: 1.5V AAA Alkaline Battery x 3 pieces
